B2762 After normal/trouble signal is output from the intrusion sensor (theft warning sensor sub-assembly) as result...

DESCRIPTION

The intrusion sensor (theft warning sensor) detects any moving object by using ultrasonic waves and outputs the signals to inform the multiplex network body ECU of an intrusion, so that the theft deterrent system can set off the alarm.
The intrusion sensor (theft warning sensor) conducts self-diagnosis immediately after power is supplied to the sensor (when the theft deterrent system is set).
If a malfunction is detected in the SIG2 line, the multiplex network body ECU outputs this DTC.

DTC No.	DTC Detection Condition	Trouble Area
B2762	After normal/trouble signal is output from the intrusion sensor (theft warning sensor sub-assembly) as result of self-diagnosis, following malfunctions are detected: SIG2 circuit is open Reception of signals other than normal/trouble signal	Intrusion sensor (Theft warning sensor) Wire harness Multiplex network body ECU

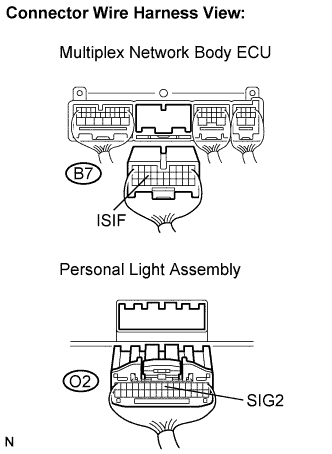

WIRING DIAGRAM

INSPECTION PROCEDURE

1. CHECK HARNESS AND CONNECTOR (THEFT WARNING SENSOR ASSEMBLY - MULTIPLEX NETWORK BODY ECU)

1. Disconnect the O2 light connector and B7 ECU connector.

2. Measure the resistance according to the value(s) in the table below.

   Resistance:

   Symbol (Tester Connection)	Specified Condition
   SIG2 (O2-8) - B7-13 (ISIF)	Below 1 Ω
   SIG2 (O2-8) - Body ground	10 kΩ or higher

NG	REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

2. CHECK THEFT WARNING SENSOR SUB-ASSEMBLY (PERSONAL LIGHT ASSEMBLY)

1. Check that the DTC disappears when a normally functioning theft warning sensor sub-assembly is installed.

   OK:

   DTC B2762 in not output.


NG	REPLACE INSTRUMENT PANEL J/B ASSEMBLY

OK
REPLACE PERSONAL LIGHT ASSEMBLY
