REMOVAL

Removal / installation


1. REMOVE FRONT BUMPER ASSEMBLY
(Click here)

2. DRAIN HYBRID TRANSAXLE FLUID

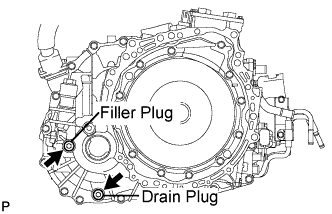

  1. C105763E01
    Using a socket hexagon wrench 10 mm, remove the filler plug and gasket.

  1. Using a socket hexagon wrench 10 mm, remove the drain plug and gasket.

  1. Using a socket hexagon wrench 10 mm, install the drain plug, and a new gasket.

    Torque:
    39 N*m{ 398 kgf*cm , 29 ft.*lbf }


3. REMOVE OIL PUMP ASSEMBLY

  1. Disconnect the oil pump connector.

  1. Disconnect the 2 oil cooler hoses.

  1. C113113E01
    Remove the 2 nuts and oil pump assembly.
