INSTALLATION
Removal / installation
| 1. INSTALL FRONT SPEED SENSOR |
Install the front speed sensor with the bolt.
- Torque:
- 8.0 N*m{ 82 kgf*cm , 71 in.*lbf }
- NOTICE:
- Prevent foreign matter from attaching to the sensor tip.

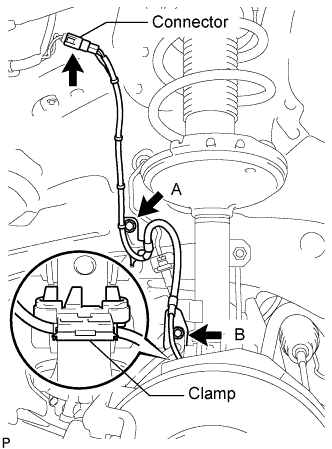

Install the front speed sensor with the 2 bolts and the clamp.
- Torque:
- Bolt A:
- 5.0 N*m{ 51 kgf*cm , 44 in.*lbf }
- Bolt B:
- 19 N*m{ 194 kgf*cm , 14 ft.*lbf }
- NOTICE:
- Do not twist the wire harness for the front speed sensor when installing the front speed sensor.
Connect the front speed sensor connector.
| 2. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY |
Install the front fender splash shield sub-assembly with the bolts, screws, and clips.
| 3. INSTALL FRONT WHEEL |
- Torque:
- 103 N*m{ 1,050 kgf*cm , 76 ft.*lbf }
| 4. CHECK SPEED SENSOR SIGNAL |
