RX400h · Service Manual BRAKE

REMOVAL

Removal / installation


1. REMOVE FRONT WHEEL

2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY

  1. Remove the bolts, screws, clips and front fender splash shield sub-assembly.


3. REMOVE FRONT SPEED SENSOR

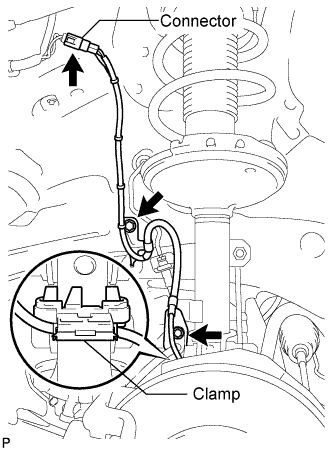

  1. C108783E05
    Disconnect the front speed sensor connector.

  1. Remove the 2 bolts from the body and the shock absorber assembly.

  1. Remove the clamp from the steering knuckle.

  1. F040300
    Remove the bolt and the front speed sensor.

    NOTICE:
    1. Prevent foreign matter from attaching to the sensor tip.
    2. Clean the installation hole and the surface for the speed sensor every time the speed sensor is removed.
