RX400h · Service Manual HEATER & AIR CONDITIONING SYSTEM

INSPECTION

Inspection


INSPECT COOLING UNIT MOTOR SUB-ASSEMBLY W/FAN

  1. Remove the cooling unit motor sub-assembly w/ fan.

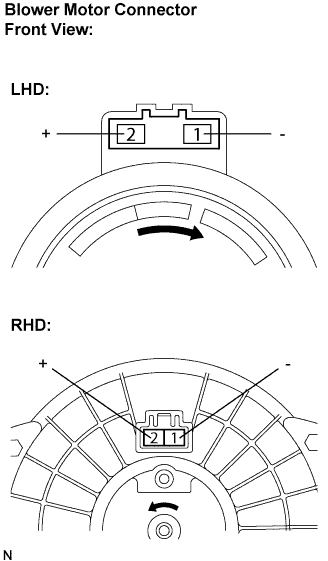

  1. E109230E02
    Connect the negative (-) lead connected to terminal 1 of the blower motor connector, the positive (+) lead to terminal 2.

    OK:
    Blower motor operates smoothly.
