P3108-535
Diagnostic trouble codes
DESCRIPTION
The HV control ECU detects a wiring malfunction in the serial communication line of the w/ motor compressor assembly.| DTC No. |
INF Code |
DTC Detection Condition |
Trouble Area |
| P3108 |
535 |
Serial communication malfunction |
|
| ↑ |
536 |
A/C inverter malfunction |
|
| ↑ |
538 |
Open in STB signal circuit |
|

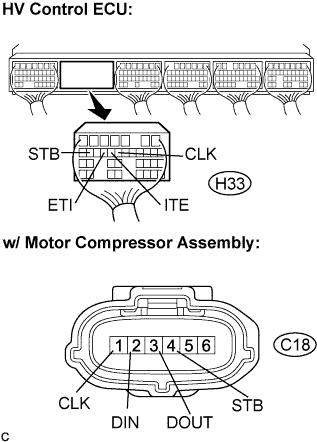

WIRING DIAGRAM
INSPECTION PROCEDURE
| 1. CHECK HARNESS AND CONNECTOR (HV CONTROL ECU - W/ MOTOR COMPRESSOR ASSEMBLY) |
Disconnect the H33 connector from the HV control ECU.
Disconnect the C18 w/ motor compressor assembly connector.
Measure the voltage according to the value(s) in the table below when the ignition switch is in the ON position.
- Standard Voltage:
Tester Connection
Specified Condition
CLK (H33-14) - Body ground
Below 1 V
ITE (H33-15) - Body ground
Below 1 V
ETI (H33-16) - Body ground
Below 1 V
STB (H33-18) - Body ground
Below 1 V
Turn the ignition switch off.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance (Check for open):
Tester Connection
HV Control ECU - w/ motor compressor assembly
Specified Condition
CLK (H33-14) - CLK (C18-1)
Below 1 Ω
ITE (H33-15) - DIN (C18-2)
Below 1 Ω
ETI (H33-16) - DOUT (H18-3)
Below 1 Ω
STB (H33-18) - STB (H18-4)
Below 1 Ω
- Standard Resistance (Check for short):
Tester Connection
HV Control ECU or w/ motor compressor assembly - Body ground
Specified Condition
CLK (H33-14) - CLK (C18-1) - Body ground
10 kΩ or higher
ITE (H33-15) - DIN (C18-2) - Body ground
10 kΩ or higher
ETI (H33-16) - DOUT (H18-3) - Body ground
10 kΩ or higher
STB (H33-18) - STB (H18-4) - Body ground
10 kΩ or higher
|
|
||||
| OK | ||
 |
||
| ||
