P3107-215
Diagnostic trouble codes
DESCRIPTION
Refer to the circuit description for DTC P3107-213. (Click here)| DTC No. |
INF Code |
DTC Detection Condition |
Trouble Area |
| P3107 |
215 |
Abnormal communication signal |
|
WIRING DIAGRAM
Refer to the wiring diagram for DTC P3107-213. (Click here)INSPECTION PROCEDURE
| 1. CELAR DTC (HV) |
Turn the intelligent tester to the DLC3.
Turn the ignition switch to the ON position.
Select the following menu items: Powertrain / Hybrid Control / DTC / Clear.
| NEXT | |
| 2. RECONFIRM OUTPUT DTC (HV) |
Select the following menu items: Powertrain / Hybrid Control / DTC.
Read output DTC. (Click here)
- Result:
- DTC P3107-215 is output again.
|
|
||||
| NO | |
| 3. CHECK FOR INTERMITTENT PROBLEMS |
| NEXT | ||
| ||
| 4. INSPECT HYBRID VEHICLE CONTROL ECU |
Connect the oscilloscope tester to the HV control ECU terminals specified in the table below and check the waveform.

Item
Contents
Terminals
ABFS (H29-8) - E1 (H32-5)
Equipment Setting
5 V/DIV, 500 ms/DIV
Condition
READY ON
- OK:
- The waveform appears as shown in the illustration.
|
|
||||
| NG | |

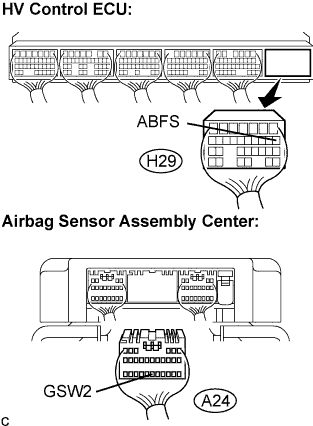

| 5. CHECK HARNESS AND CONNECTOR (HV CONTROL ECU - AIR BAG SENSOR ASSEMBLY CENTER) |
Turn the ignition switch off.
Connect the H29 connector to the HV control ECU.
Disconnect the A24 connector from the airbag sensor assembly CTR.

Measure the voltage according to the value(s) in the table below when the ignition switch is in the ON position.
- Standard voltage:
Tester Connection
Specified Condition
ABFS (H29-8) - Body ground
Below 1 V
Turn the ignition switch off.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance (Check for open):
Tester Connection
Specified Condition
ABFS (H29-8) - GSW2 (A24-25)
Below 1 Ω
- Standard Resistance (Check for short):
Tester Connection
Specified Condition
ABFS (H29-8) or GSW2 (A24-23)
10 kΩ or higher
|
|
||||
| OK | ||
| ||
