Fog Lights

REMOVAL & INSTALLATION

1. Disconnect the negative battery cable.
2. Unfasten the retainer(s), then remove the fog light assembly.

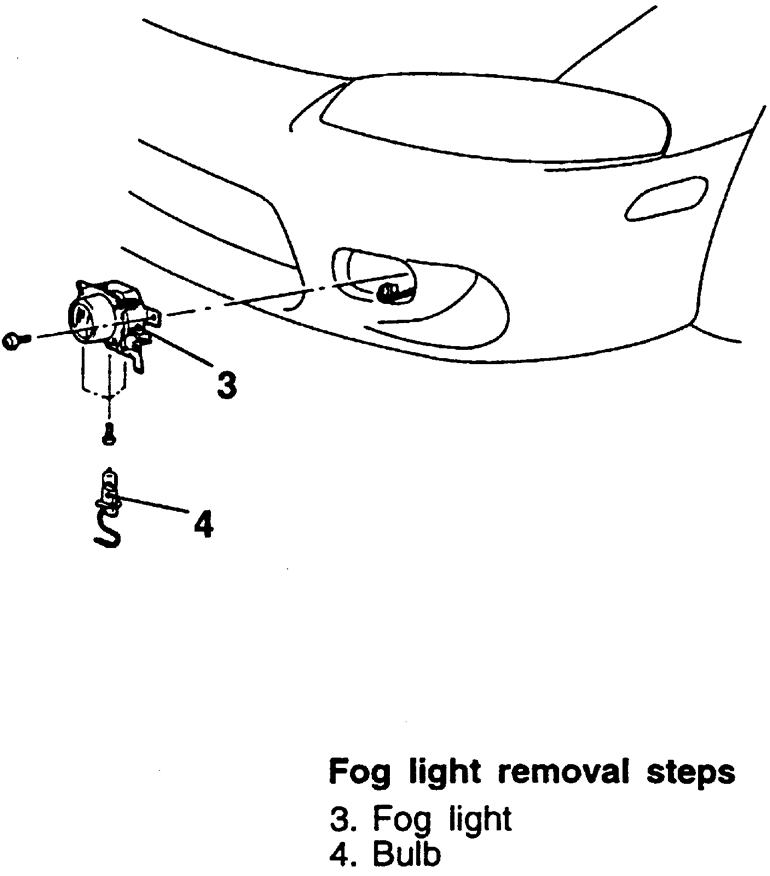

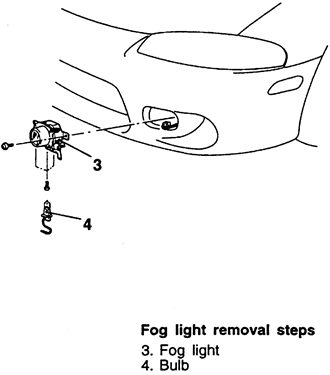

   Fig. 1: Exploded view of the fog light mounting — 1997 vehicles

3. Remove the bulb attaching spring, then pull the bulb from the assembly, holding it by the base, NOT by the glass.

   Fig. 2: Remove the retaining spring, then pull the bulb out, holding it by the base

4. Installation is the reverse of the removal procedure.
