Remove the trip counter reset knob from the cluster assembly by carefully
pulling it towards you.
Carefully separate the meter glass and the window plate from the meter
case by gently pulling apart.
Remove the retainers and the tachometer or tachometer and pressure gauge,
engine coolant temperature gauge, fuel gauge, oil pressure gauge, speedometer
or circuit board as required.

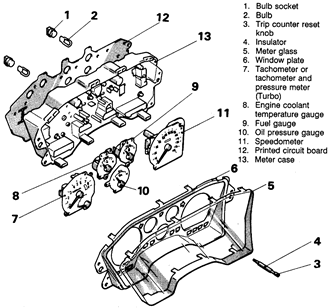

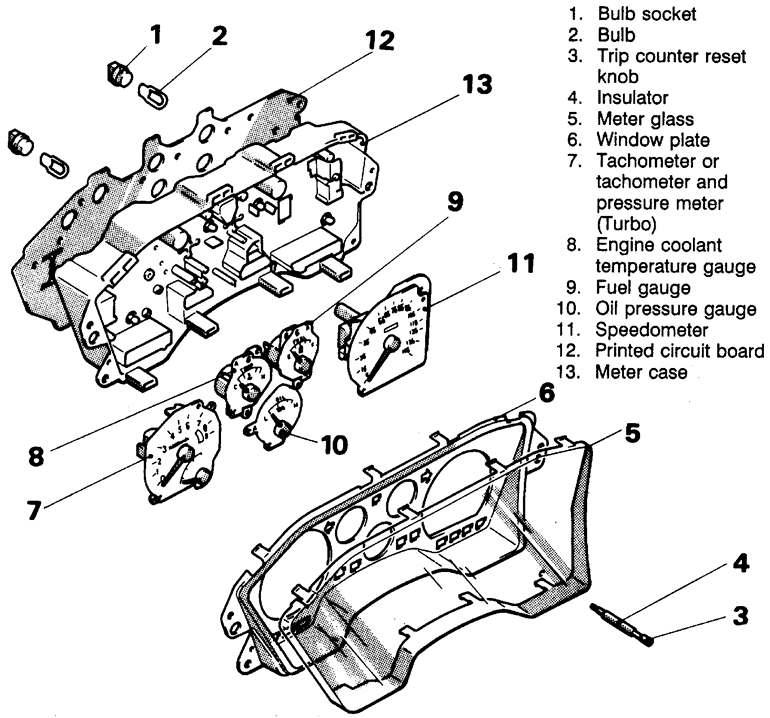

Fig. 1: Exploded view of the combination meter
(cluster) assembly
To install:
Install the removed gauge(s) into the cluster assembly and secure in position.
Install the meter glass and the window plate.
Install the trip knob to the cluster.
Install the instrument cluster into the vehicle.
Connect the negative battery cable.
Check all gauge and speedometer for proper operation.
