INSPECTION

1. With the brake drum removed from the vehicle, measure the inside diameter of the hub and drum at two or more locations.
2. The service limit specification is 9.1 in. (231mm).

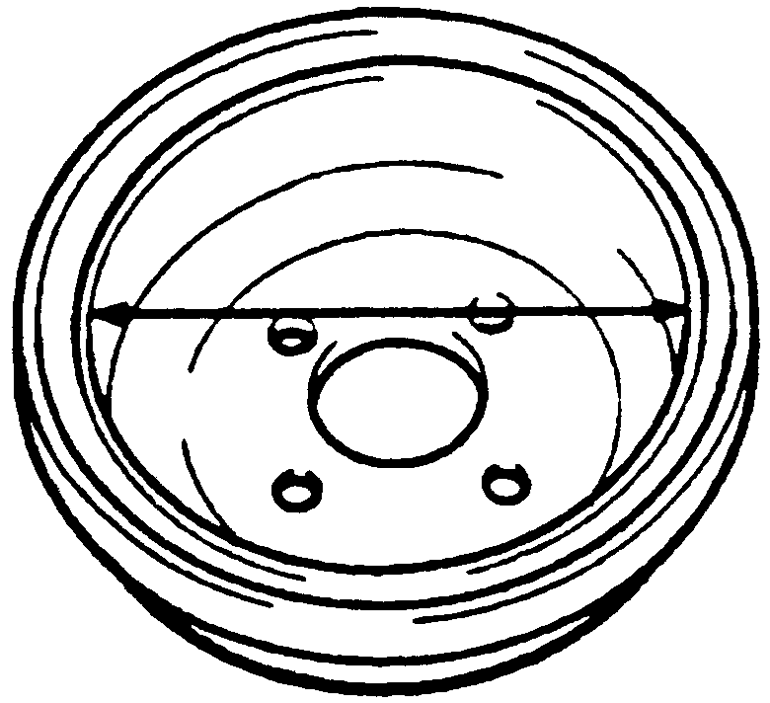

   Fig. 1: Measure the inside diameter of the brake drum

3. Replace the brake drums and shoe and lining assemblies when the wear exceeds the limit or is badly out of balance.
