To adjust the door in forward/rearward and left/right directions, loosen the hinge bolts and position the tailgate as required.

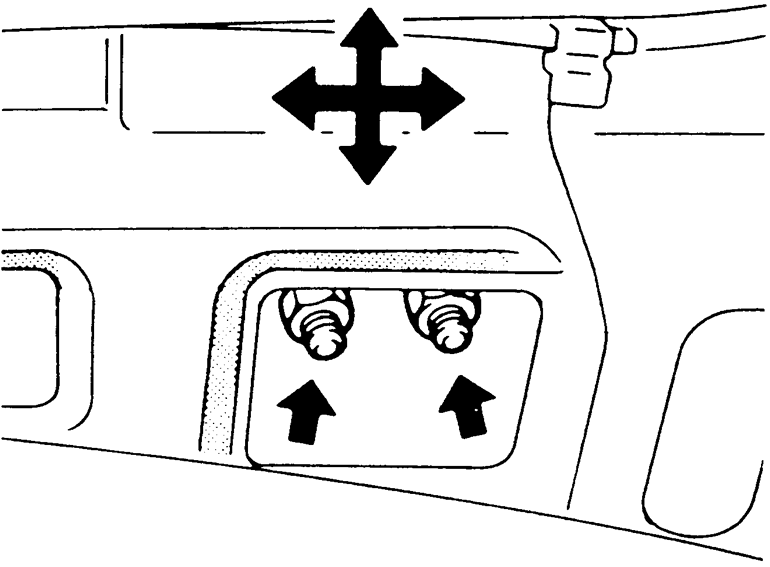

| Fig. 1: Vertical and horizontal movement of the liftgate
can be obtained by loosening the liftgate hinge mounting bolts and adjusting
liftgate
|

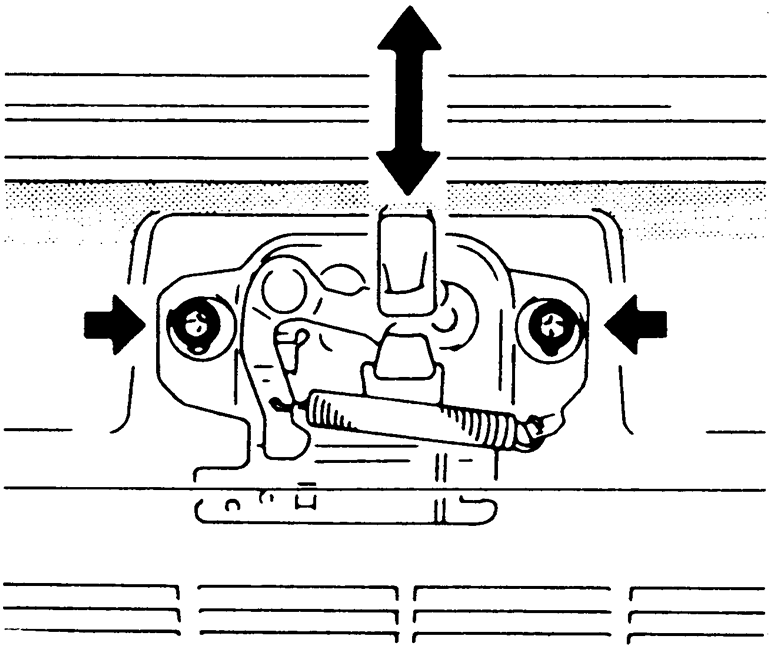

| Fig. 2: To adjust the distance between the liftgate striker
and the liftgate latch, loosen the latch mounting bolts
|
To adjust the tailgate lock striker, loosen the mounting bolts and using a plastic hammer, tap the striker to the desired position. Removing of the lower trim panel is normally required to access the striker.
