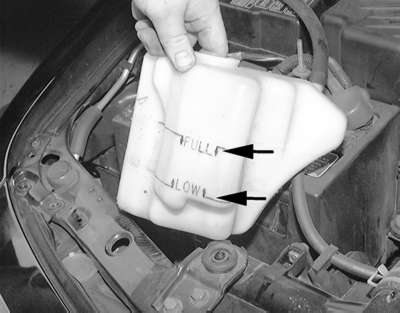

| Fig. 1: The coolant level should be between the FULLand LOWlevels
on the coolant recovery tank
|
The coolant recovery tank is located in the engine compartment, typically on the fender well.
The proper coolant level is slightly above the FULL COLD marking on the recovery tank when the engine is cold. Top off the cooling system using the recovery tank and its marking as a guideline.
NOTE: Never overfill the recovery tank.
A coolant level that consistently drops is usually a sign of a small, hard to detect leak, although in the worst case it could be a sign of an internal engine leak. In most cases, you will be able to trace the leak to a loose fitting or damaged hose.
Evaporating ethylene glycol antifreeze will have a sweet smell and leave small, white (salt-like) deposits, which can be helpful in tracing a leak.
CAUTION
Never open, service or drain the radiator or cooling system when hot; serious
burns can occur from the steam and hot coolant. Also, when draining engine
coolant, keep in mind that cats and dogs are attracted to ethylene glycol
antifreeze and could drink any that is left in an uncovered container or in
puddles on the ground. This will prove fatal in sufficient quantities. Always
drain coolant into a sealable container. Coolant should be reused unless it
is contaminated or is several years old.
