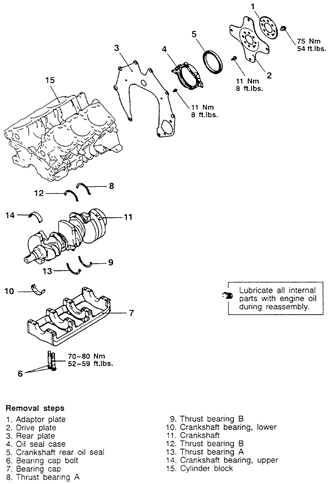

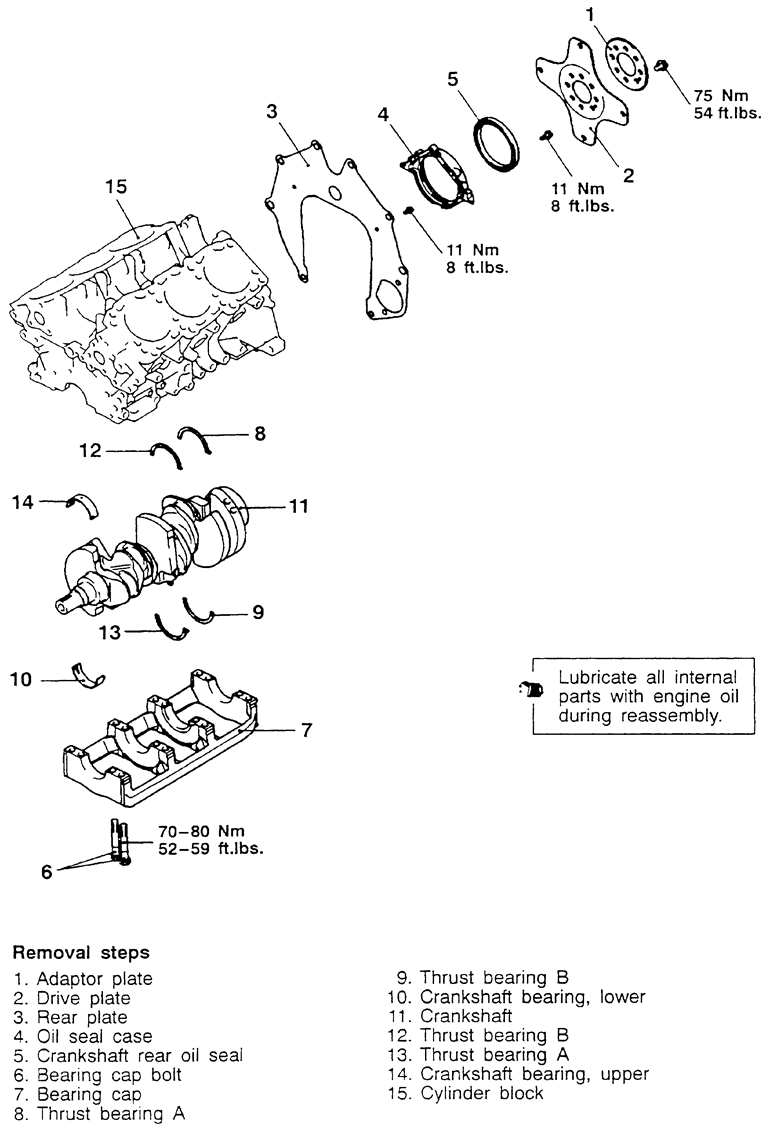

Fig. 1: Typical drive plate and rear main seal mounting
Disconnect the negative battery cable.
Remove the transaxle from the vehicle, as outlined in Section 7.
Remove the flywheel/driveplate assembly.
Remove the rear engine plate and the bellhousing cover.
If the crankshaft rear oil seal case is leaking, remove it. Otherwise, just
remove the oil seal. Some engines have a separator that should also be removed.
To install:
Lubricate the inner diameter of the new seal with clean engine oil.
Install the oil seal in the crankshaft rear oil seal case using tool MD998376
or equivalent. Press the seal all the way in without tilting it. Force the
oil separator into the oil seal case so the oil hole in the separator is downward.
Run a bead of sealer along any seams between the seal case and block. Install
the seal case with a new gasket.
Install the flywheel/driveplate and transaxle.
Connect the negative battery cable and check for leaks.
