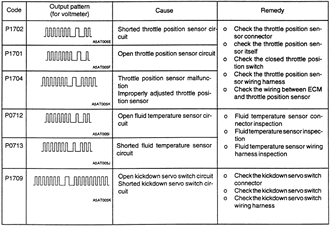

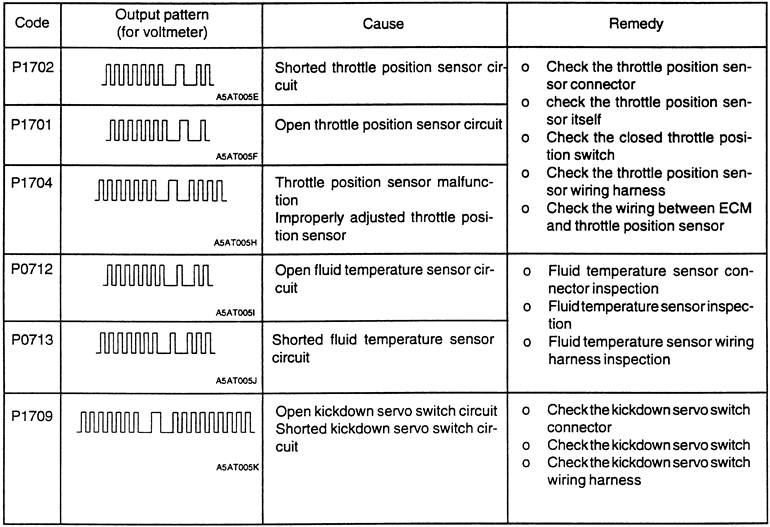

| Fig. 1: Mitsubishi flash out DTC's, 1 of 4 — Type
4 (OBD II) Codes
|

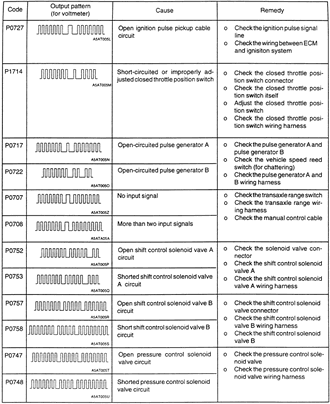

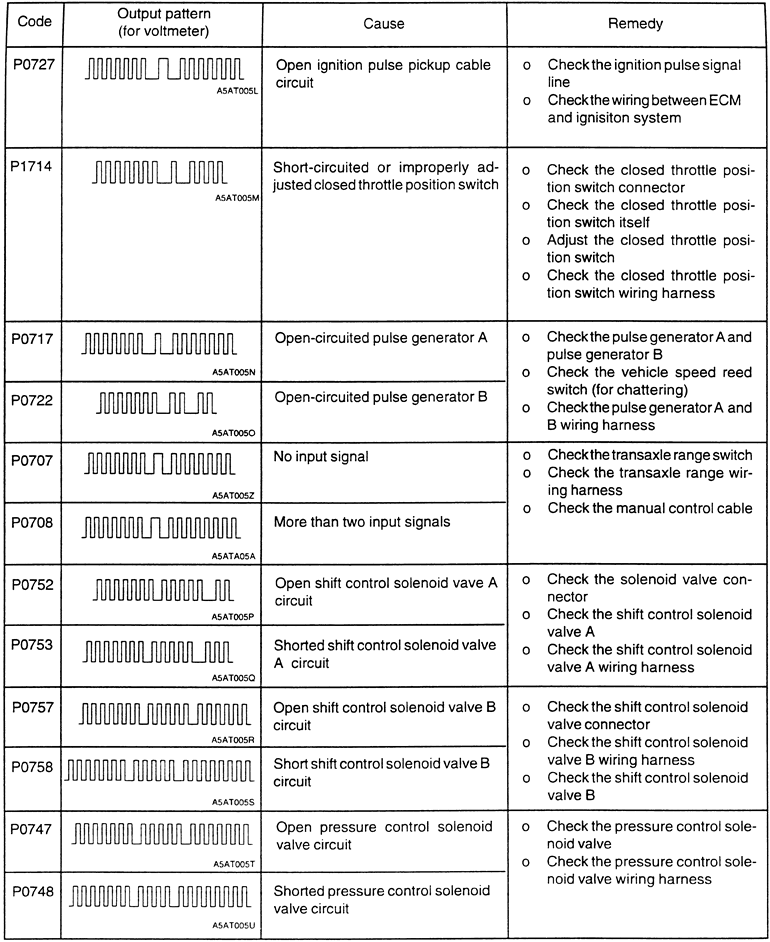

| Fig. 2: Mitsubishi flash out DTC's, 2 of 4 — Type
4 (OBD II) Codes
|

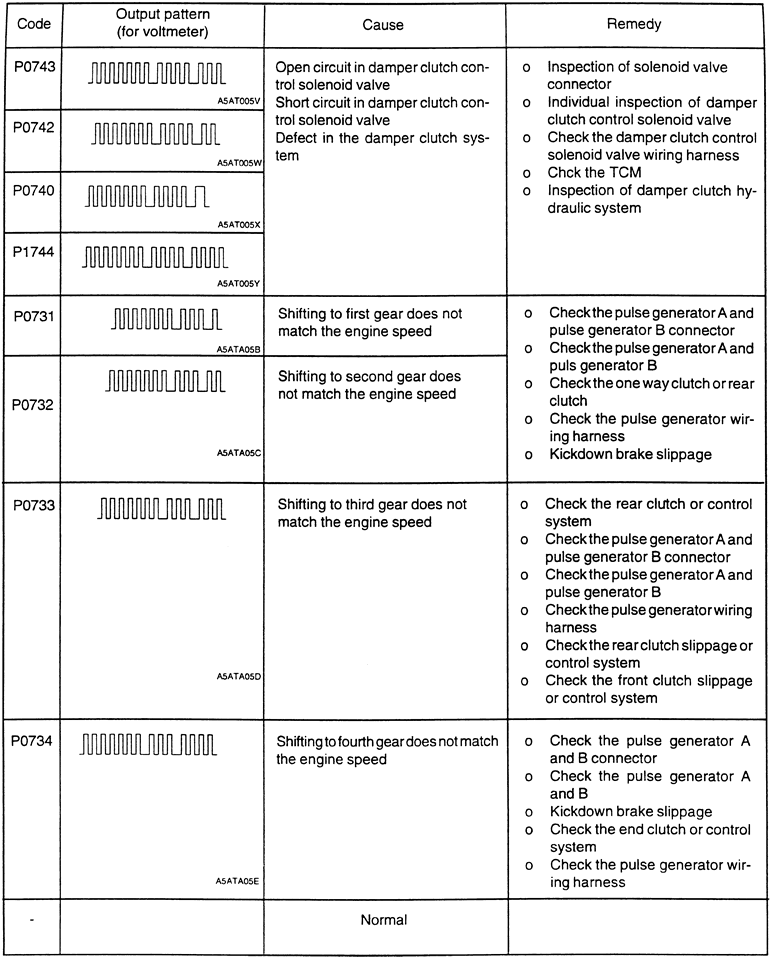

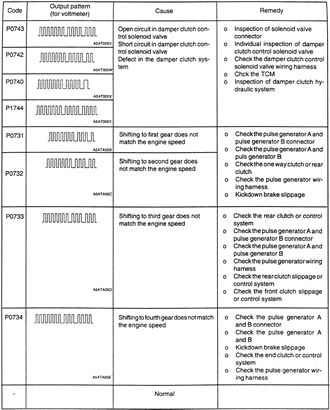

| Fig. 3: Mitsubishi flash out DTC's, 3 of 4 — Type
4 (OBD II) Codes
|

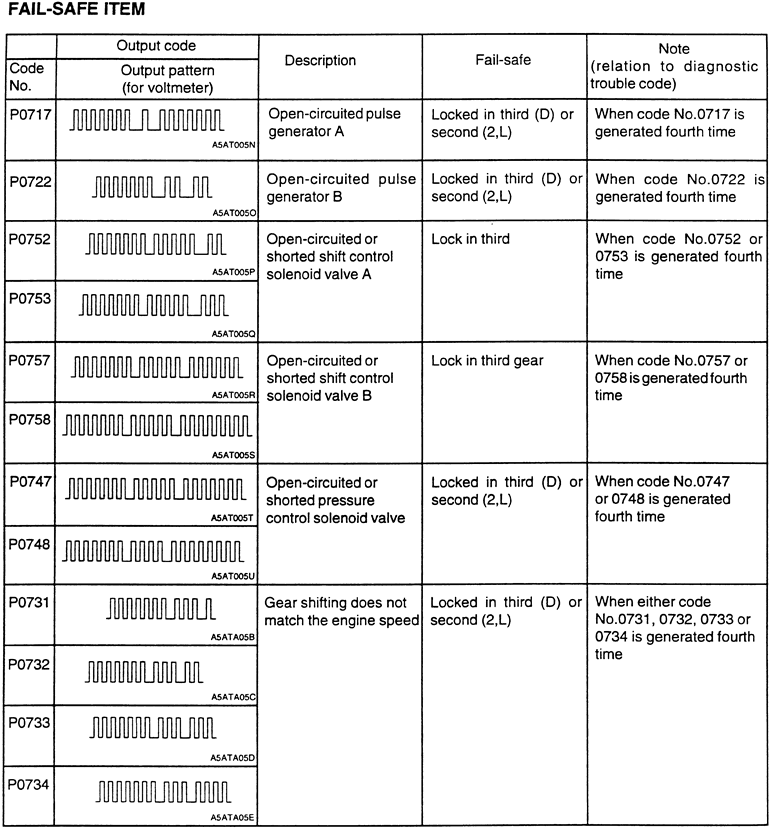

| Fig. 4: Mitsubishi flash out DTC's, 4 of 4 — Type
4 (OBD II) Codes
|
