REMOVAL & INSTALLATION

1. Disconnect the negative battery cable.

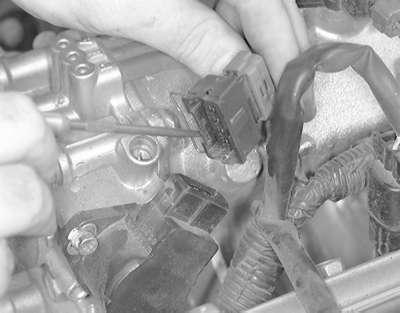

2. Disconnect the wiring harness from the TP sensor.

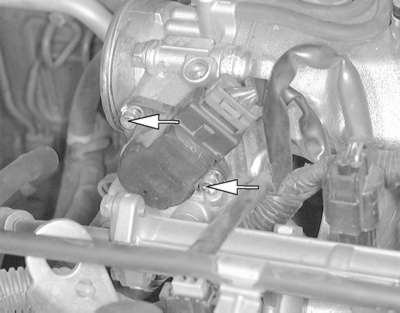

3. Remove the two sensor mounting screws, then pull the TP sensor off of the throttle shaft.

   To install:

4. Carefully slide the rotary tangs on the sensor into position over the throttle shaft, then rotate the sensor clockwise to the installed position.

   CAUTION
   Failure to install the TP sensor in this manner may result in sensor damage or high idle speeds.

   NOTE: The TP sensor is not adjustable.

5. Install and tighten the sensor mounting screws.
6. Connect the wiring harness to the sensor.
7. Connect the negative battery cable.
