AIMING

1. Park the vehicle on level ground, so it is perpendicular to and, facing a flat wall about 25 ft. (7.6m) away.
2. Remove any stone shields, if equipped, and switch ON the lights.
3. Loosen the mounting hardware of the lights so you can aim them as follows:
   1. The horizontal distance between the light beams on the wall should be the same as between the lights themselves.
   2. The vertical height of the light beams above the ground should be 4 in. (10cm) less than the distance between the ground and the center of the lamp lenses for fog lights. For driving lights, the vertical height should be even with the distance between the ground and the center of the lamp.
4. Tighten the mounting hardware.
5. Test to make sure the lights work correctly, and the light pattern is even.

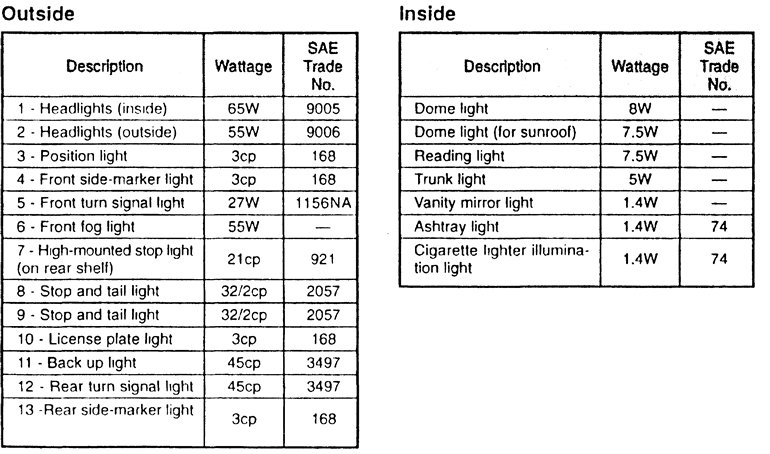

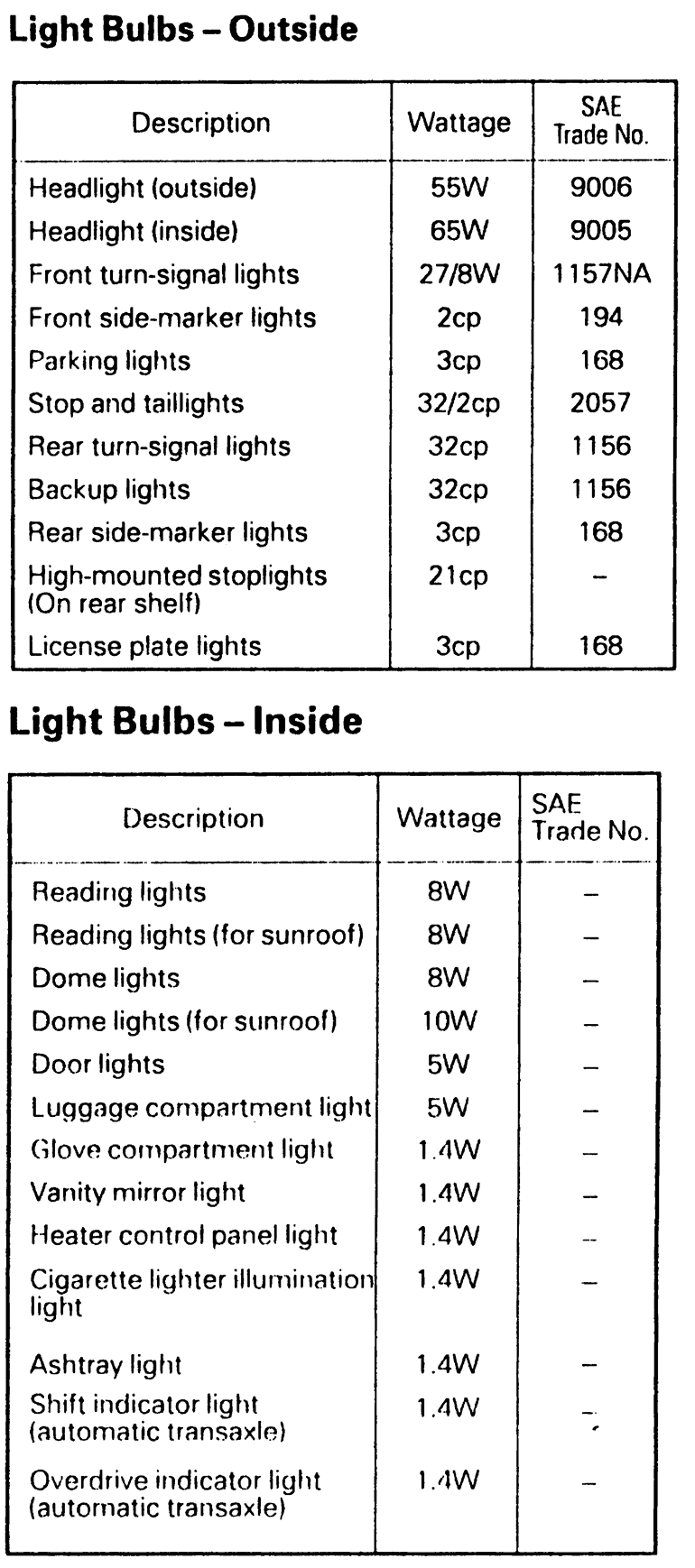

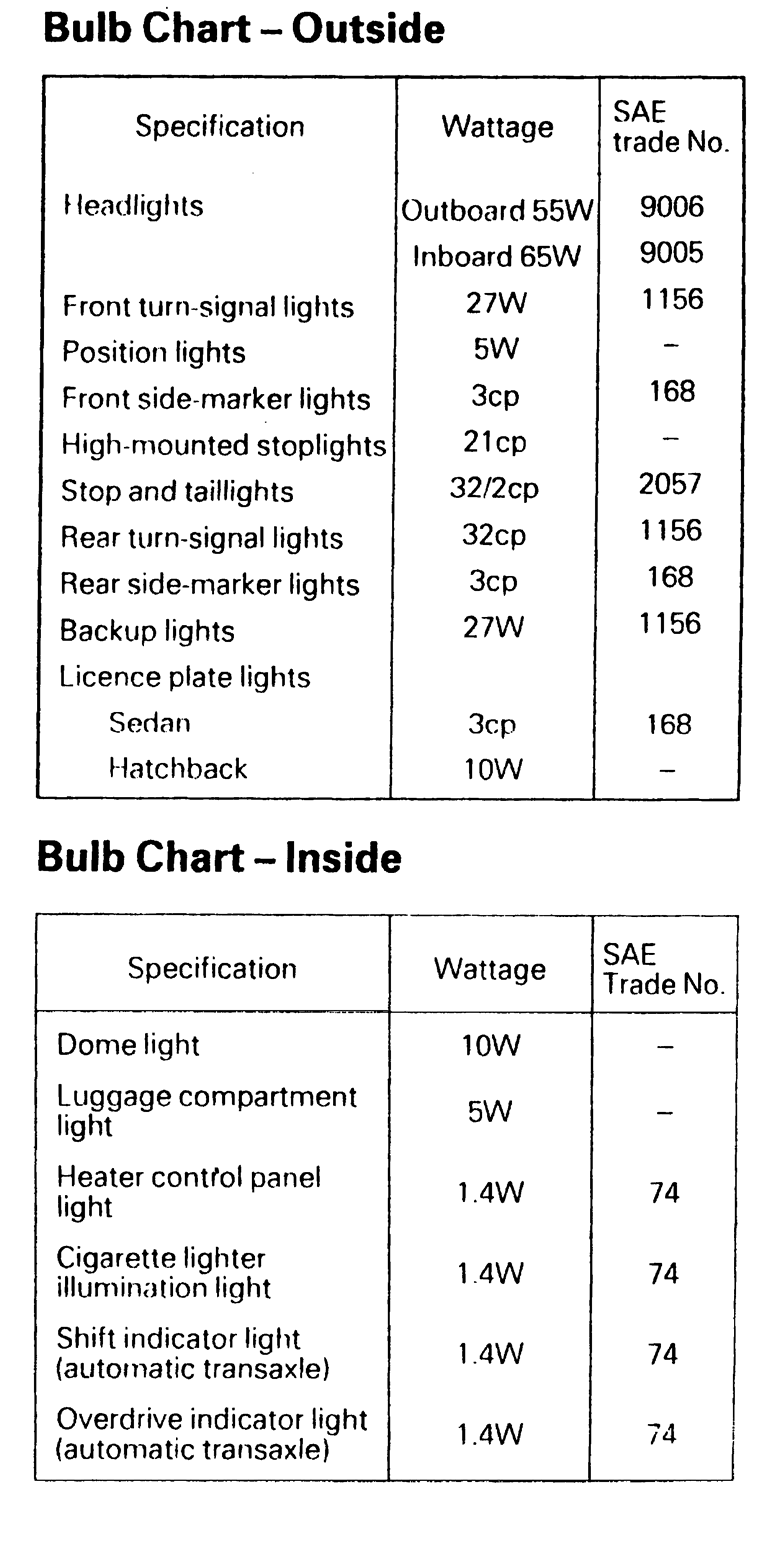

   Light bulb application chart — 1990–92 Mirage

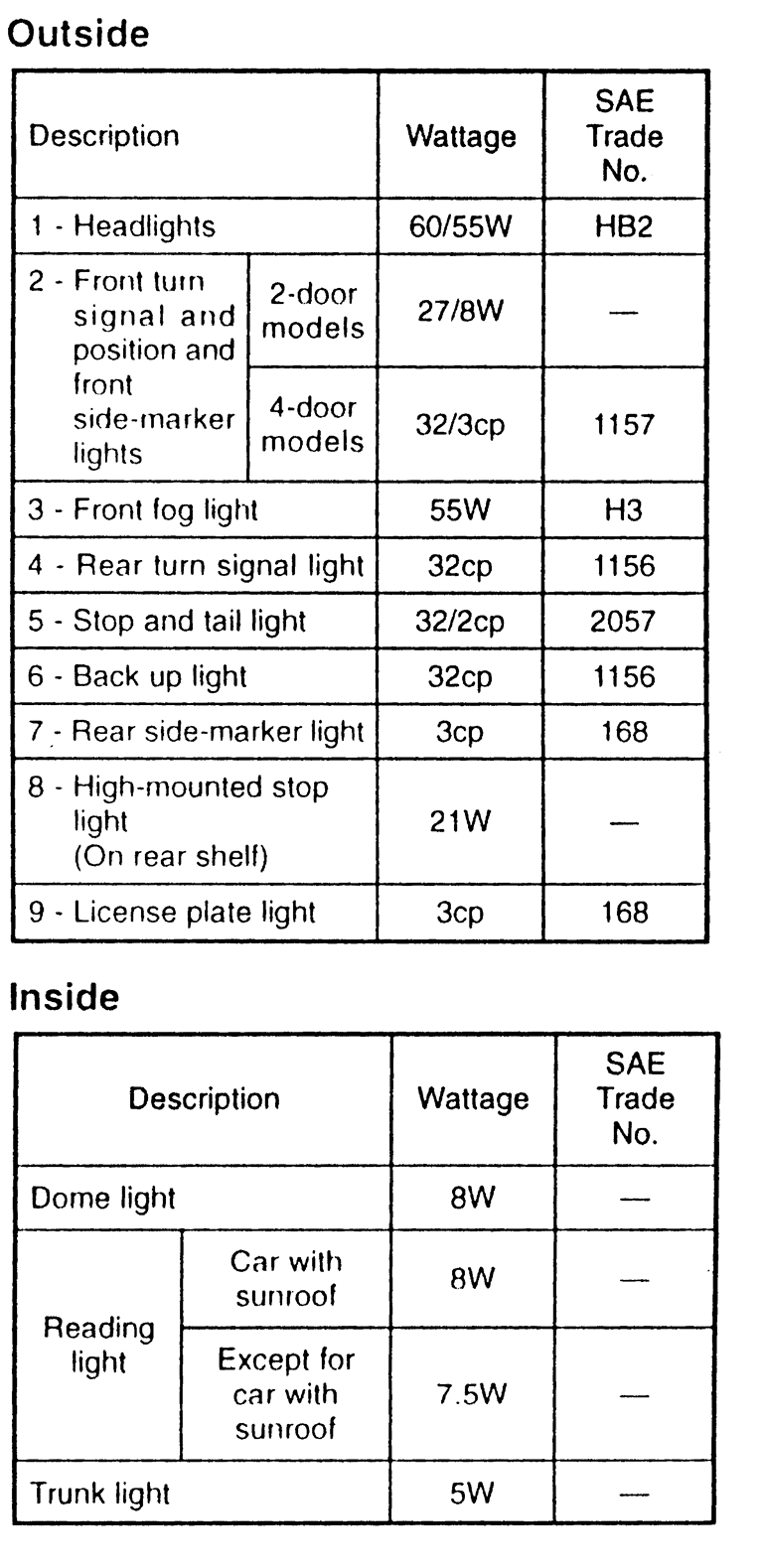

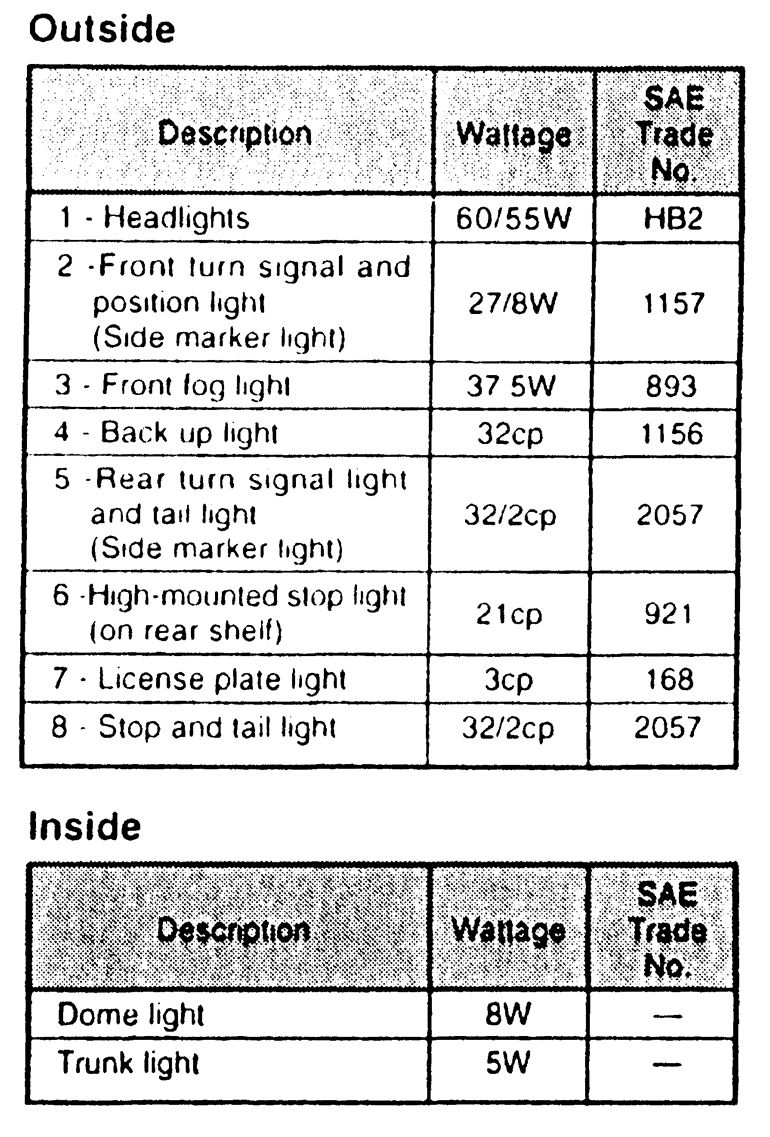

   Light bulb application chart — 1993–96 Mirage

   Light bulb application chart — 1997–00 Mirage

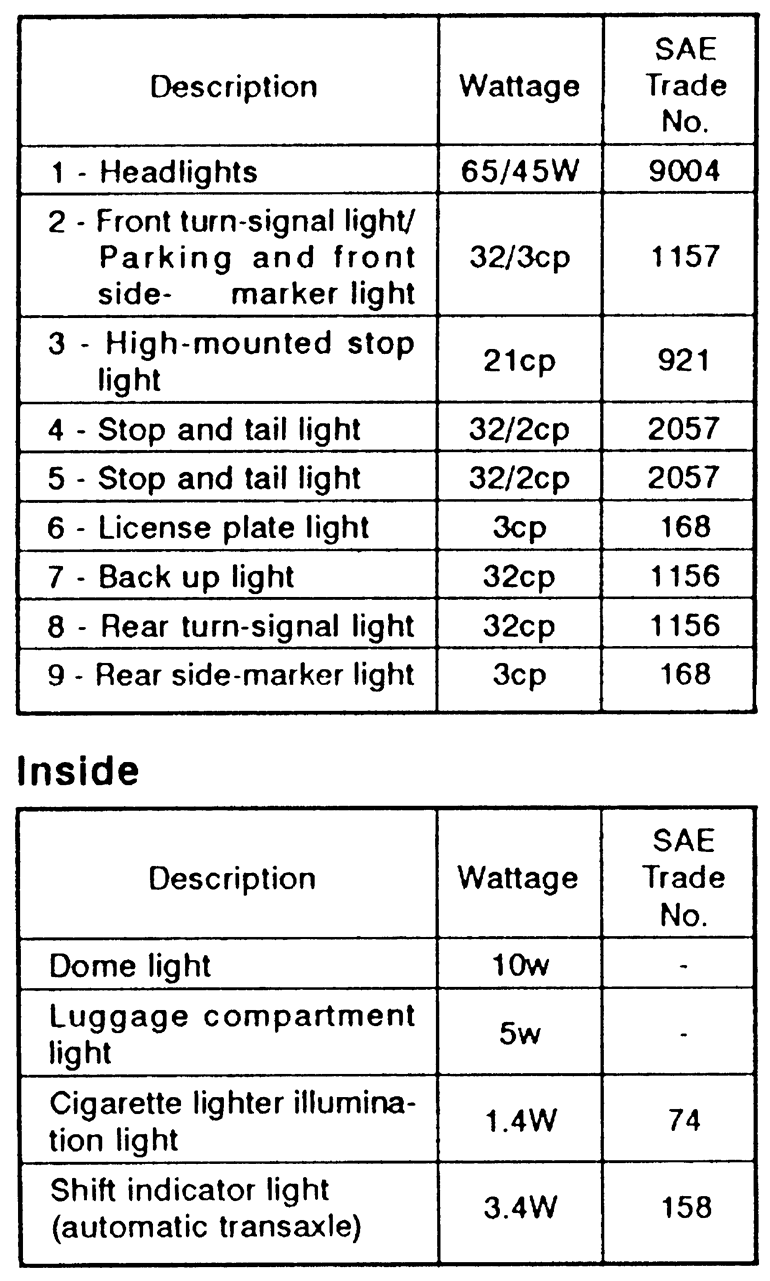

   Light bulb application chart — 1990–93 Galant

   Light bulb application chart — 1994–98 Galant

   Light bulb application chart — 1999–00 Galant

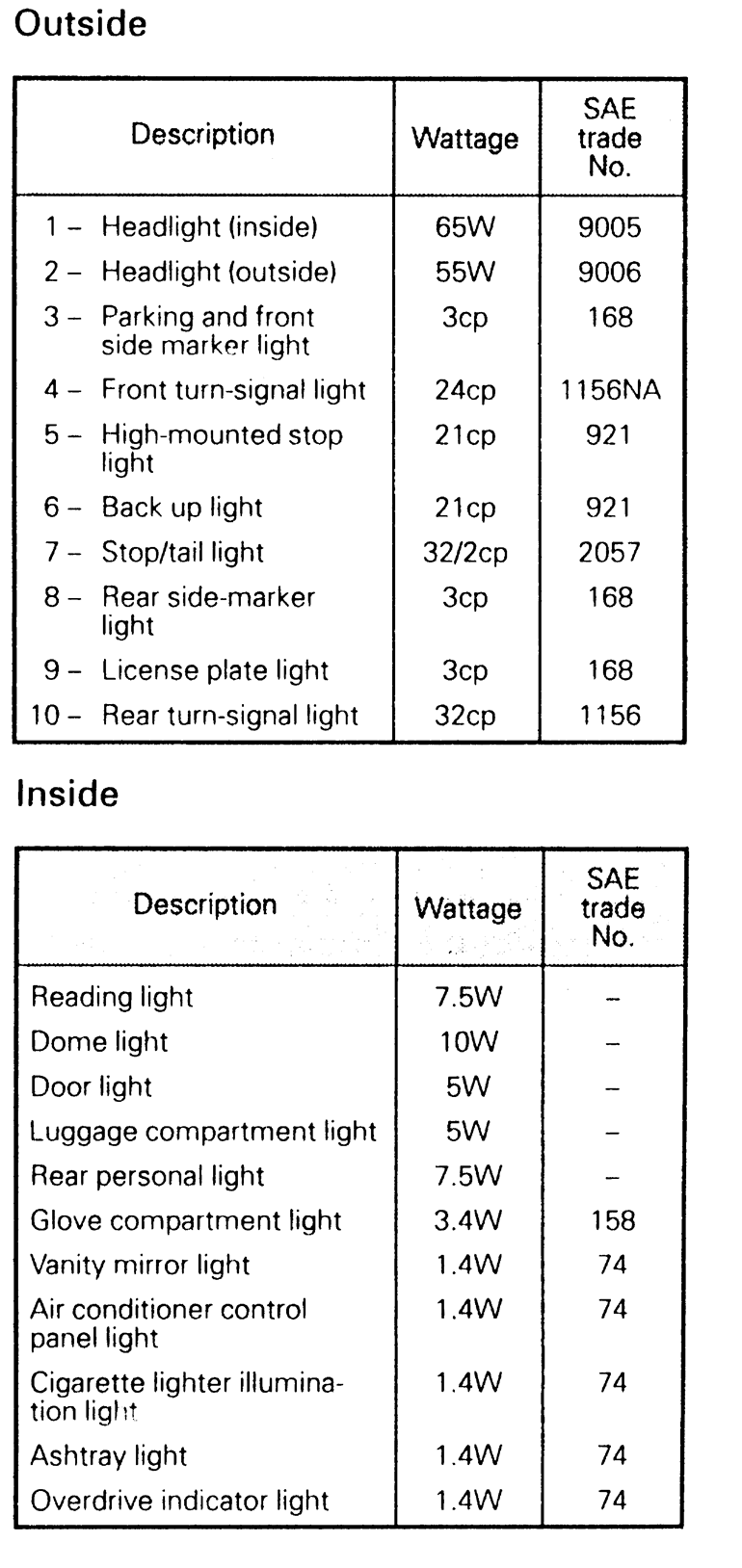

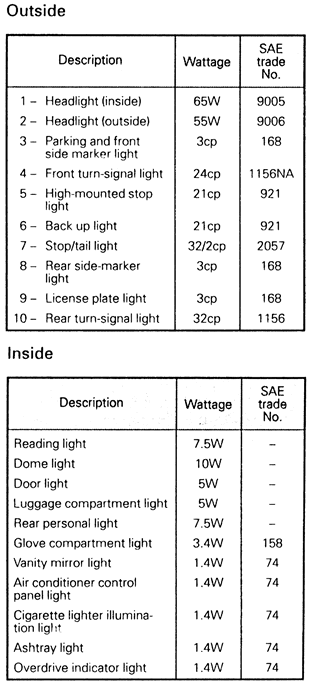

   Light bulb application chart — 1992–96 Diamante

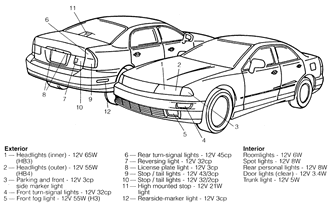

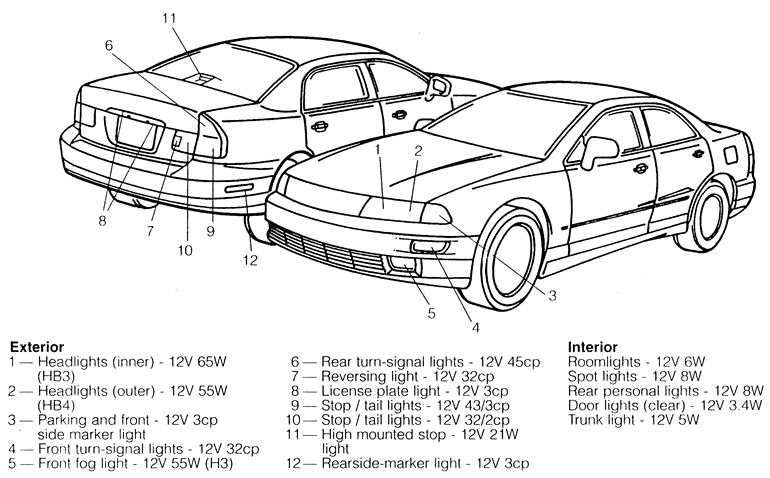

   Light bulb application chart — 1997–00 Diamante
