ENTERTAINMENT SYSTEMS

Radio Receiver/Amplifier/Tape Player/CD Player

REMOVAL & INSTALLATION

1. Disconnect battery negative cable.

   NOTE: If equipped with an air bag, be sure to disarm it before entering the vehicle.

2. Remove the panel from around the radio. On some models the panel is retained with screws. On others, use a plastic trim tool to pry the lower part of the radio panel loose.
3. Remove the radio/tape/CD player mounting bracket retaining screws.
4. Slide the radio chassis out of the instrument panel and disconnect the radio wiring harness and antenna cable.

   NOTE: Depending on the speaker installation, it may save time at installation to identify and tag all wires before they are disconnected.

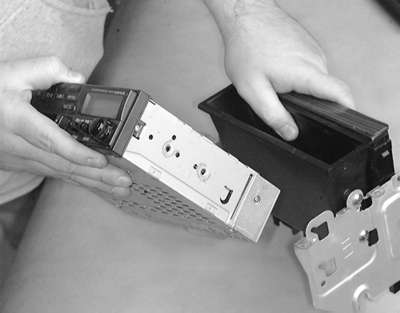

5. Remove the mounting brackets from the radio.

   To install:

6. The installation is the reverse of the removal procedure. Make all electrical and antenna connections before fastening the radio assembly in place.
7. Test all functions of the entertainment system prior to final installation. If all are satisfactory, install the unit and center panel.
8. Connect the negative battery cable and recheck the entire system for proper operation.

CD Changer

1. Disconnect the negative battery cable.
2. Open the trunk lid.
3. Remove any necessary trim to access the CD changer.
4. Remove the CD-changer-to-bracket retaining screws.
5. Lift the changer from the bracket and detach the electrical connectors.
6. Remove the changer from the vehicle.

   To install:

7. The installation is the reverse of removal.
