The turn signal and hazard flasher unit is located in the interior fuse panel located under the driver's left side knee protector. They are replaced by simply pulling them straight out. Note that the prongs are arranged in such a way that the flasher must be properly oriented before attempting to install it. Turn the flasher until the orientation of the prongs is correct and simply push it firmly in until the prongs are fully engaged.

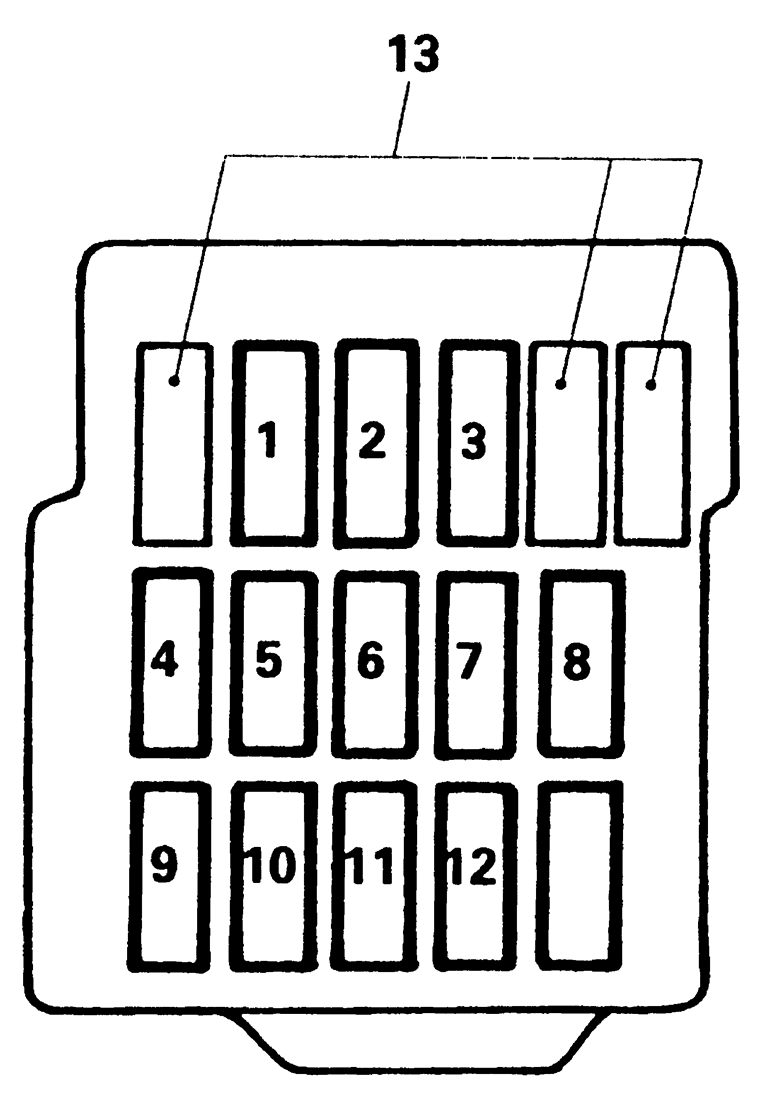

| 1990–92 Mirage fuse location chart
|

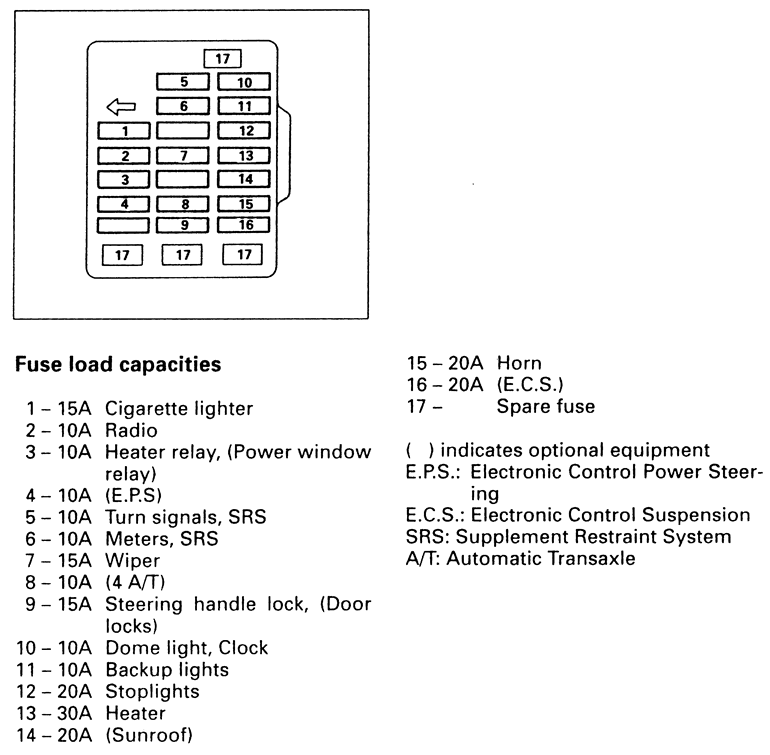

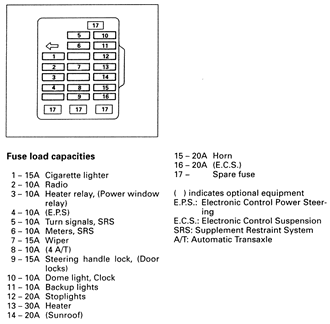

| 1993–96 Mirage fuse location chart
|

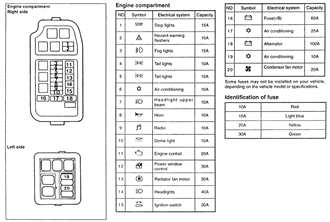

| 1997–00 Mirage engine compartment fuse location
chart
|

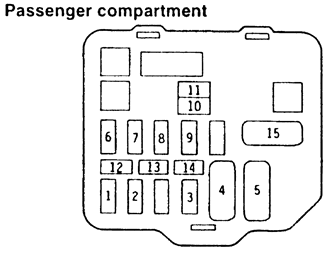

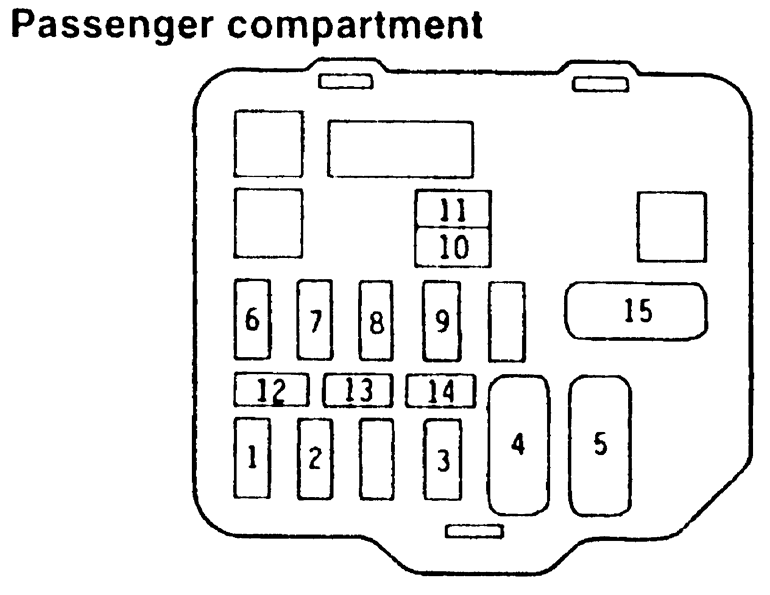

| 1997–00 Mirage passenger compartment fuse location
chart
|

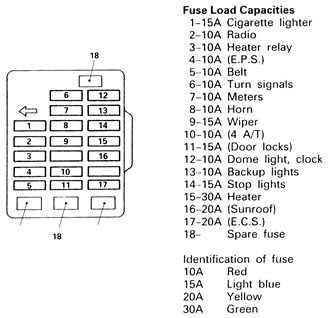

| 1990–93 Galant fuse location chart
|
| 1994–98 Galant fuse location chart
|
| 1999–00 Galant fuse location chart
|

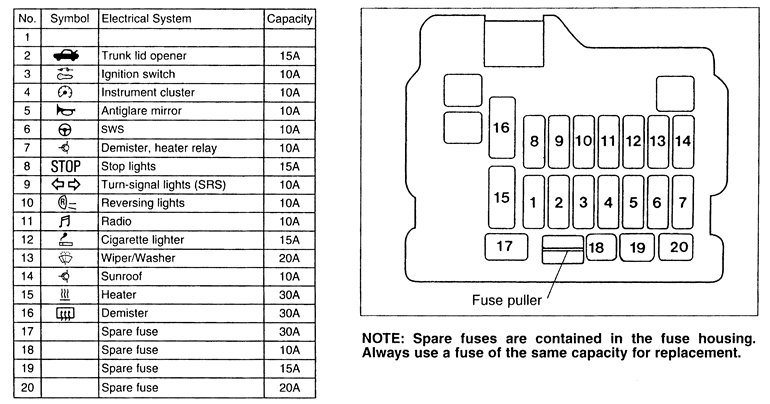

| 1992–96 Diamante fuse location chart
|
| 1997–00 Diamante passenger compartment fuse location
chart
|

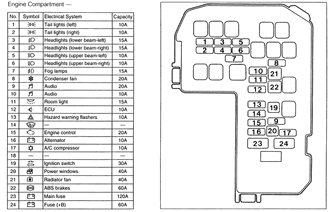

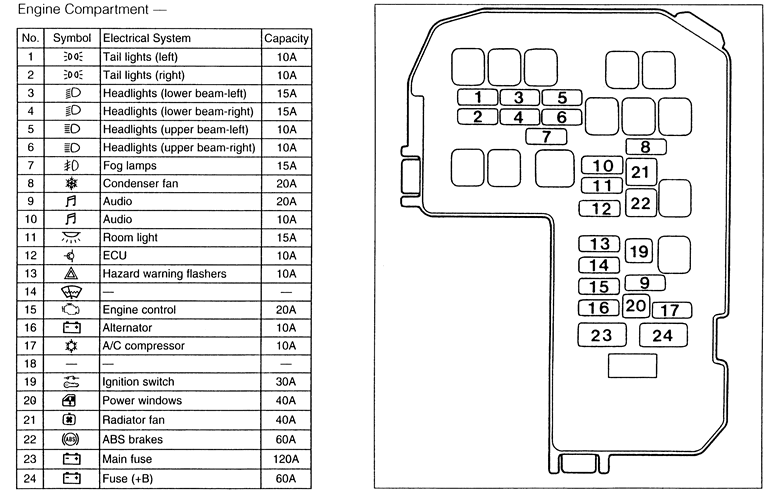

| 1997–00 Diamante engine compartment fuse location
chart
|
