NOTE: The following adjustment is for the cable actuated clutch
system on the Mirage. The Hydraulic systems on all other models are self-adjusting.

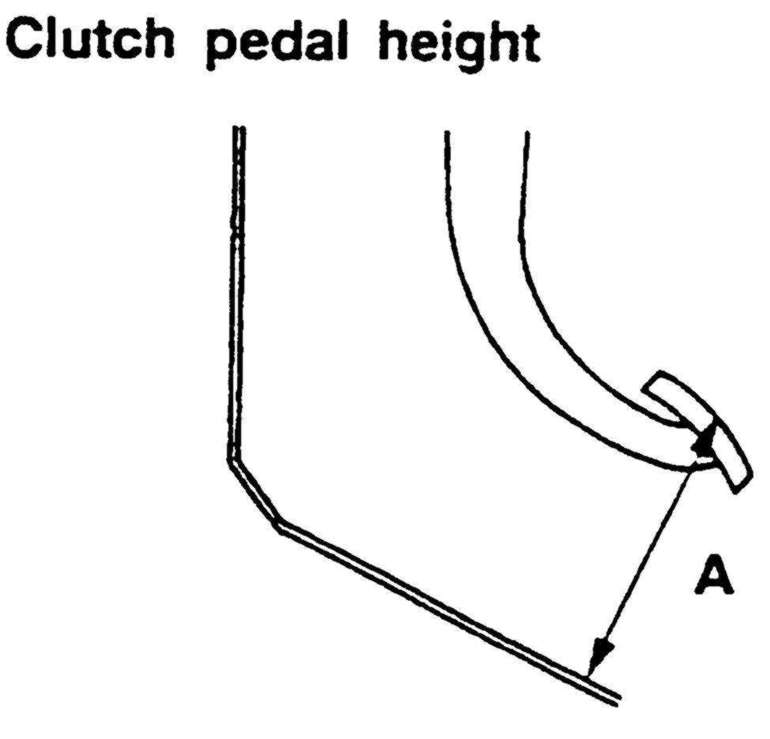

| Fig. 1: Clutch pedal height (A) measurement — Mirage
|
- Measure the clutch pedal height (measurement A). The specification is 6.38–6.50
in. (162–165mm).
NOTE: The clutch pedal height is not adjustable. If not
within specifications, part replacement is required.
- Depress clutch pedal several times and check the pedal free-play (measurement
B).
- If measurement is not 0.67–0.87 in. (17–22mm), adjustment is
required.
- To adjust, turn the outer cable adjusting nut, located at the firewall,
until free-play is within range.
- Depress the clutch pedal several times and recheck the measurement.
