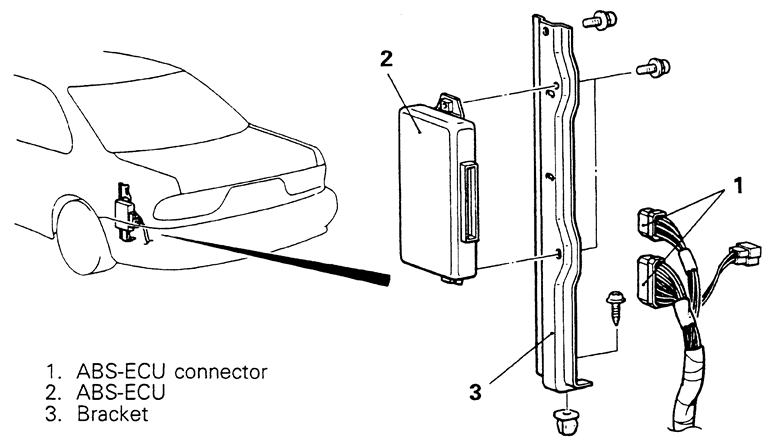

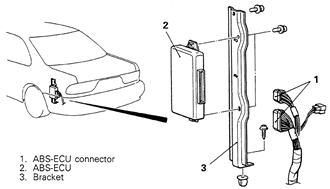

Fig. 2: Anti-lock control unit mounting — Galant
and Diamante
Ensure that the ignition switch is OFF throughout the
procedure.

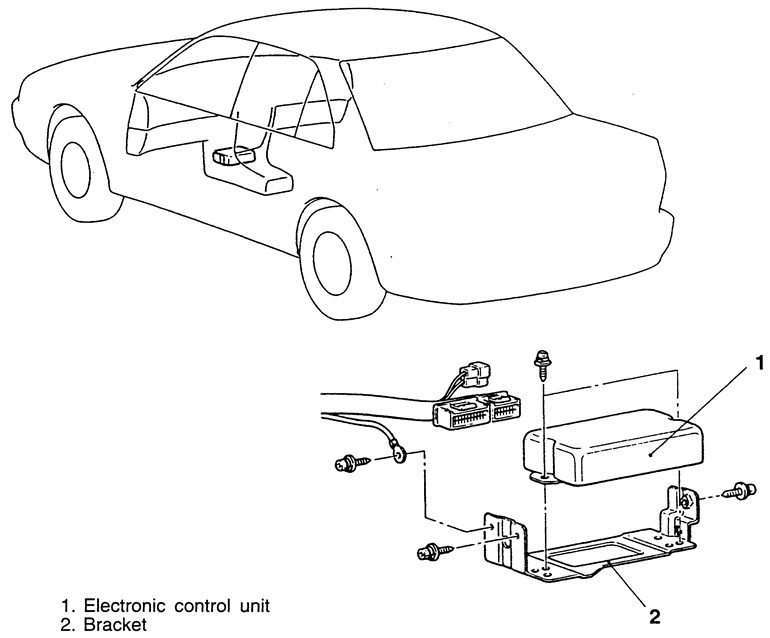

For Galant and Diamante models, remove the left side luggage compartment
trim panel.
For Mirage models, remove the floor console assembly.
Release the lock on the bottom of the connector. Detach the multi-pin
connector from the control unit.
Remove the retaining nuts and remove the control unit from its bracket.
The bracket may be removed if desired.
To install:
Place the bracket in position if it was removed. Install the controller
and tighten the retaining nuts.
Connect the ground wire to the bracket, if removed. Insure a proper, tight
connection. The ground must be connected before the multi-pin harness is
connected.
Attach the multi-pin connector and secure the lock.
Install the luggage compartment trim or the floor console.
