Ignition Switch

Removal & Installation

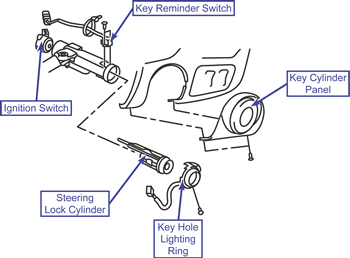

To Remove:

1. Remove the instrument lower cover (LH).
2. Remove the key cylinder panel.
3. Remove the keyhole lighting ring.

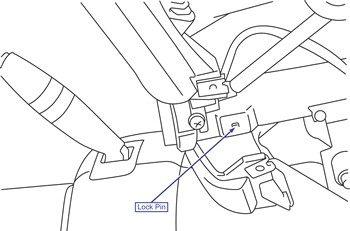

4. To remove the steering lock cylinder, insert the key into the steering lock cylinder and turn it to the "ACC" position. Use a small Phillips-head screwdriver (+) to push the lock pin of the steering lock cylinder in and then pull the steering lock cylinder toward you.
5. Remove the ignition switch and the key reminder switch.

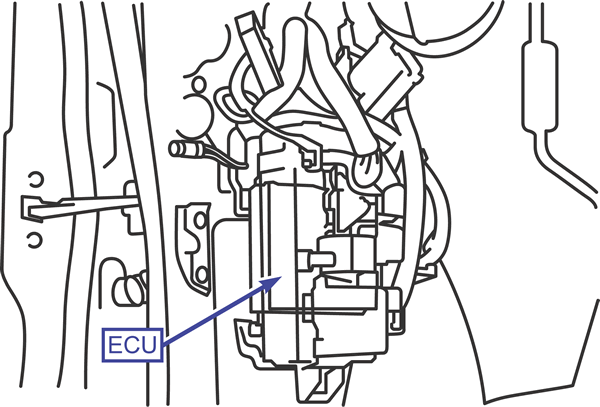

6. Remove the ECU.

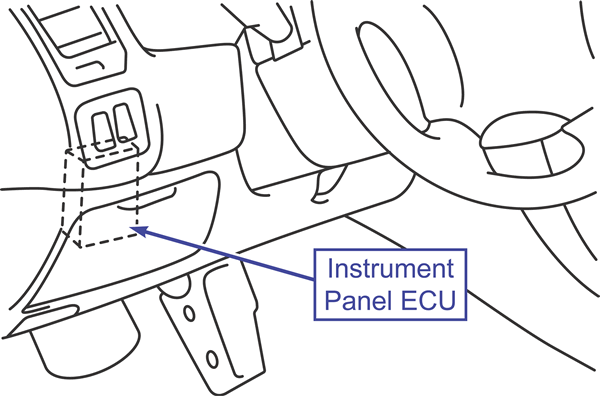

7. Remove the instrument panel ECU.

To Install:

1. Install the instrument panel ECU.

2. Install the ECU.

   Ignition switch

3. Install the key reminder switch and the ignition switch.
4. Install the steering lock cylinder.

5. Install the keyhole lighting ring.
6. Install the key cylinder panel.
7. Install the instrument lower cover (LH).
