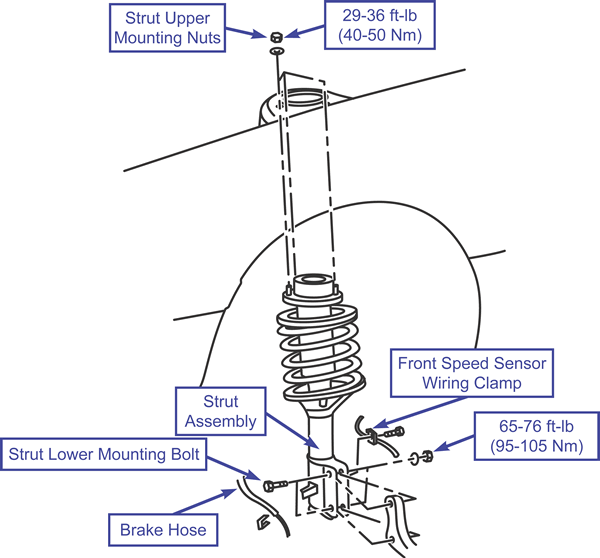

Strut Assembly

Removal & Installation

To Remove:

1. Disconnect the brake hose.
2. Remove the front speed sensor wiring clamp (on vehicles with ABS only).
3. Remove the strut lower mounting bolt by suspending the Lower Arm and Knuckle from the vehicle with wire then remove the strut mounting bolts.
4. Remove the strut upper mounting nuts.
5. Remove the strut assembly.

To Install:

1. Install the strut assembly.
2. Install the strut upper mounting nuts.
3. Install the strut lower mounting bolt.
4. Install the front speed sensor wiring clamp (on vehicles with ABS only).
5. Connect the brake hose.
