Brake Disc

Removal & Installation

Front

Rear

To Remove:

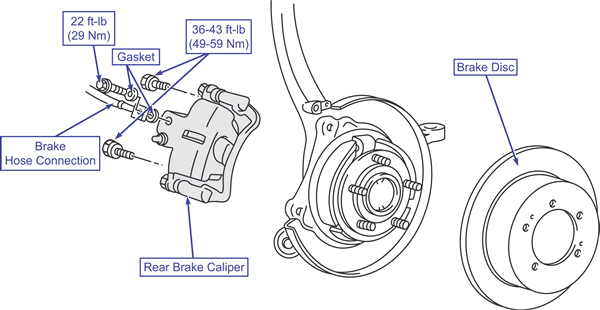

Rear disc brake & rear brake caliper

  1. Disconnect the brake hose.
  2. Remove the gasket.
  3. Remove the rear Brake Caliper.
  4. Remove the brake disc.

To Install:

Rear disc brake & rear brake caliper

  1. Install the brake disc.
  2. Install the rear Brake Caliper.
  3. Install the gasket.
  4. Connect the brake hose.
