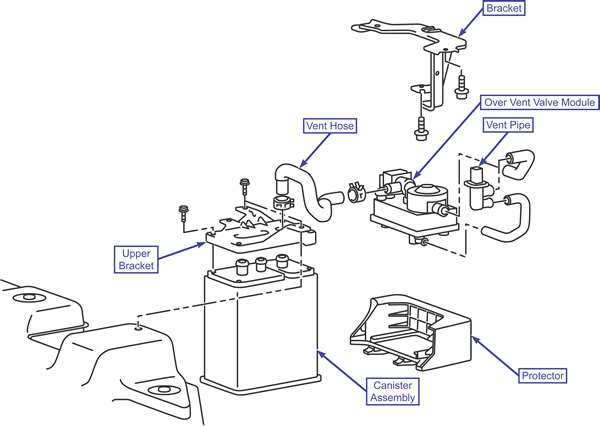

Evaporative Emission Canister

Removal & Installation

To Remove:

1. Remove the fuel tank.
2. Remove the protector.
3. Remove the upper bracket.
4. Remove the canister assembly.

To Install:

1. Install the canister assembly.
2. Install the upper bracket.
3. Install the protector.
4. Install the fuel tank.
