Idle Air Control (IAC) Motor
Removal & Installation
NOTE:
Refer to the following illustrations for reference.

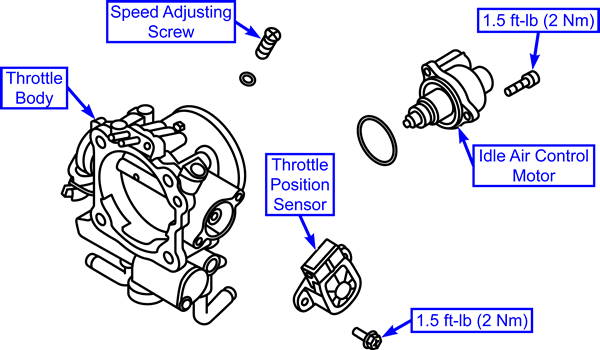

Idle air control motor removal/installation (2.4L)

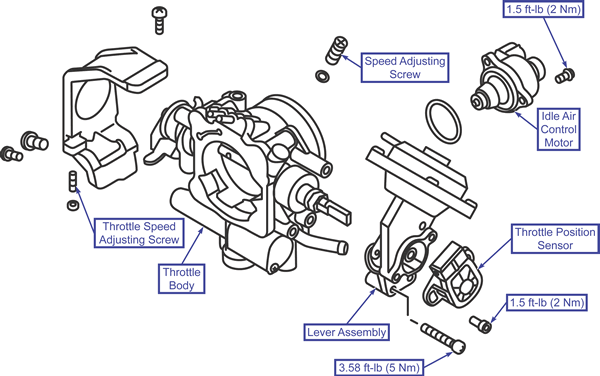

Idle air control motor removal/installation (3.0L)
