Knock Sensor (KS)

Removal & Installation

2.4L Engine

To Remove:

1. Remove the air cleaner assembly.
2. Remove the intake manifold support.
3. Remove the intake manifold.

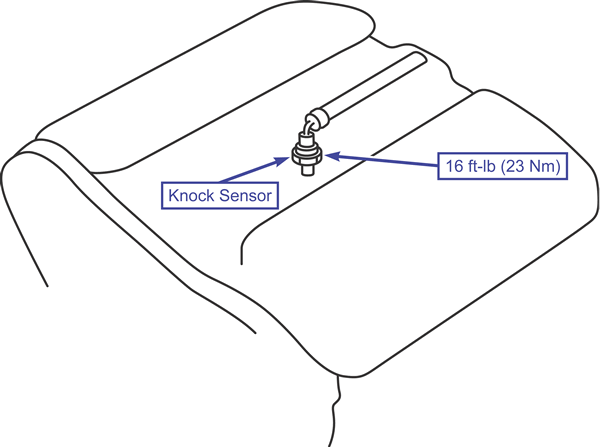

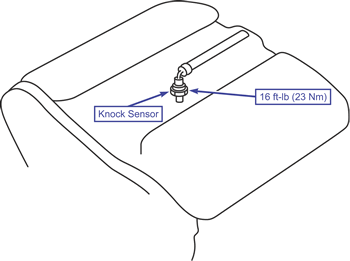

4. Remove the knock sensor.

To Install:

1. Install the knock sensor.
2. Install the intake manifold.
3. Install the intake manifold support.
4. Install the air cleaner assembly.

3.0L Engine

To Remove:

1. Remove the intake manifold.

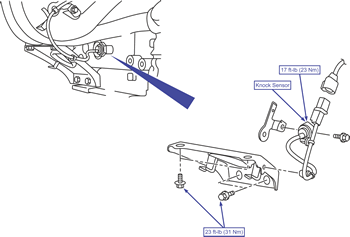

2. Remove the knock sensor.

To Install:

1. Install the knock sensor.
2. Install the intake manifold.
