Instrument Panel

Removal & Installation

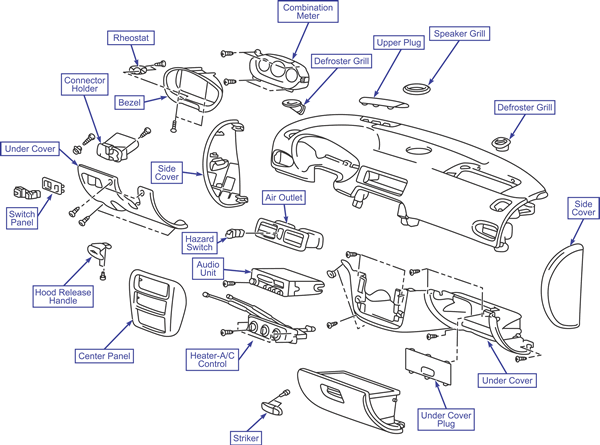

To Remove:

1. Remove the instrument panel side covers.
2. Remove the hood lock release handle.
3. Remove the switch panel.
4. Remove the connector holder.
5. Remove the driver’s side under cover.
6. Remove the center panel, hazard warning switch and center air outlet.
7. Remove the foot air duct.
8. Remove the audio unit.
9. Remove the heater control assembly.
10. Remove the glove box, light switch and striker.
11. Remove the passenger’s under cover plug and under cover.
12. Remove the rheostat.
13. Remove the bezel and combination meter.
14. Remove the side defroster grills and speaker grills.
15. Remove the upper A-pillar trim.
16. Remove the instrument panel upper plug.
17. Remove the passenger’s air bag module.

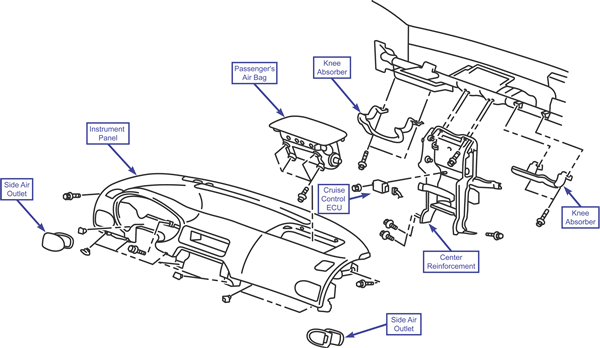

18. Remove the instrument panel and related components.

To Install:

1. Install the instrument panel and related components.
2. Install the passenger’s air bag module.
3. Install the instrument panel upper plug.
4. Install the upper A-pillar trim.
5. Install the side defroster grills and speaker grills.
6. Install the combination meter and bezel.
7. Install the rheostat.
8. Install the passenger’s under cover and under cover plug.
9. Install the glove box, light switch and striker.
10. Install the heater control assembly.
11. Install the audio unit.
12. Install the foot air duct.
13. Install the center panel, hazard warning switch and center air outlet.
14. Install the driver’s side under cover.
15. Install the connector holder.
16. Install the switch panel.
17. Install the hood lock release handle.
18. Install the instrument panel side covers.
