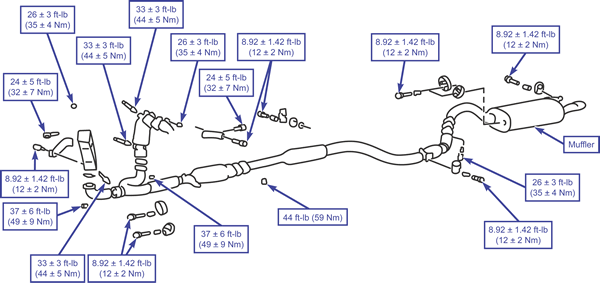

Exhaust System

Removal & Installation

To Remove:

1. Remove the exhaust tail pipe diffuser (optional).
2. Remove the main muffler.
3. Remove the hangers.
4. Remove the center exhaust pipe.
5. Remove the hangers.
6. Remove the protector.
7. To remove the heated oxygen sensor (rear), use an oxygen sensor wrench (special tool #MD998770) as shown.

   Oxygen sensor wrench #MD998770

8. Remove the front exhaust pipe (with the catalytic converter incorporated).
9. Remove the hangers.

To Install:

1. Install the hangers.
2. Install the front exhaust pipe (with the catalytic converter incorporated).
3. To install the heated oxygen sensor (rear), use an oxygen sensor wrench (special tool #MD998770) as shown.

   Oxygen sensor wrench #MD998770

4. Install the protector.
5. Install the hangers.
6. Install the center exhaust pipe.
7. Install the hangers.
8. Install the main muffler.
9. Install the exhaust tail pipe diffuser (optional).
