Thermostat

Removal & Installation

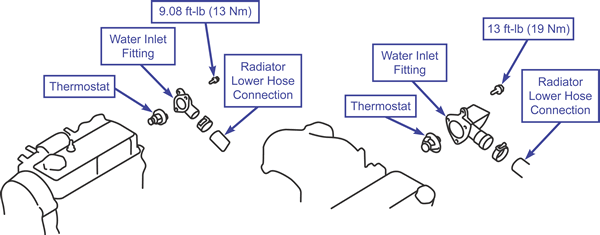

To Remove:

1. Drain the engine coolant.
2. Remove the air cleaner.
3. When disconnecting the radiator lower hose connection, put mating marks on the radiator lower hose and hose clamp before you disconnect them.
4. Remove the water inlet fitting.
5. Remove the thermostat.

To Install:

1. Install the thermostat so the jiggle valve is facing straight up. Make sure not to fold or scratch the rubber ring.

   CAUTION
   Be certain that no oil gets onto the rubber ring of the thermostat. Also be cautious not to scratch or fold the rubber ring as you install it.

2. Install the water inlet fitting.
3. When connecting the radiator lower hose connection, do the following:
   • Step 1: Insert each hose as far as the projection on the water inlet fitting will go.
   • Step 2: Line up the mating marks on the radiator hose and hose clamp, then connect the radiator hose.
