Transmission Shift Cable

Removal & Installation

To Remove:

  1. Remove the air cleaner assembly.
  2. Remove the battery and battery tray.
  3. Remove the instrument panel under cover.
  4. Remove the center console.
  5. Remove the shift cable.

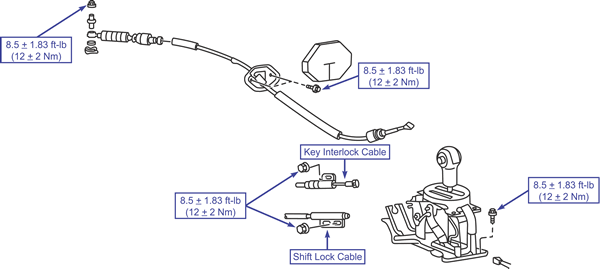

Transmission shift cable removal/installation

Center console removal/installation

To Install:

  1. Install the shift cable.
  2. Install the center console.
  3. Install the instrument panel under cover.
  4. Install the battery and battery tray.
  5. Install the air cleaner assembly.
