WARNING
Compress the coil spring with a suitable spring compressor before removing the nut from the piston rod. Do not use air tools to remove the nut. The vibration may cause the spring to come loose from the compressor causing personal injury.
NOTE: Hold the top of the piston rod with a wrench while removing the nut.

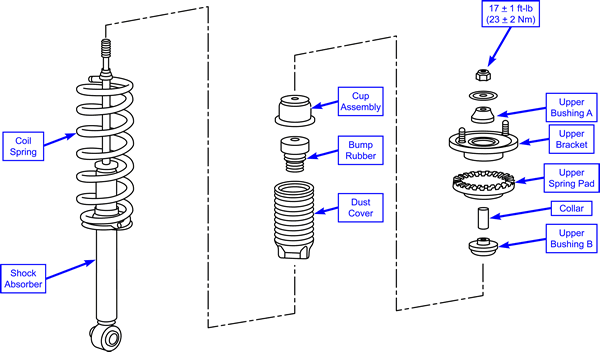

| Rear shock absorber & coil spring
|

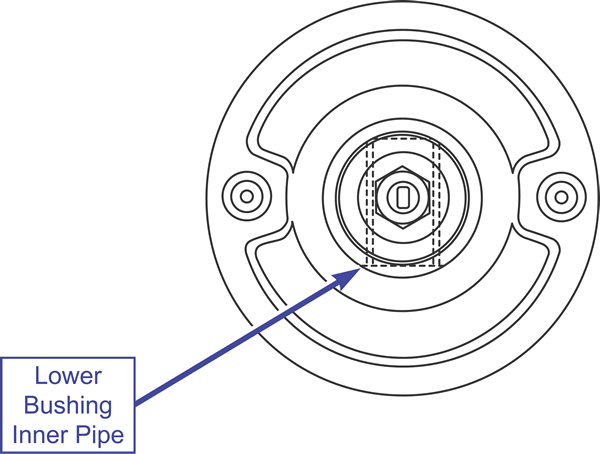

NOTE: Install the upper bracket so the lower bushing inner pipe is at the position shown.
| Rear shock absorber upper bracket installation
|
