Lower Control Arm & Toe Control Arm

Removal & Installation

NOTE: Make matchmarks on the frame and plate before removing the toe control arm bolt. Install the bolt in the original position.

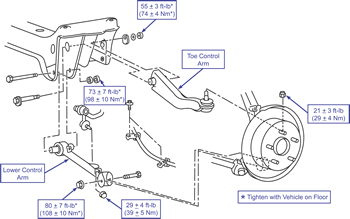

Rear lower control arm & toe control arm removal/installation
