Instrument Panel

Removal & Installation

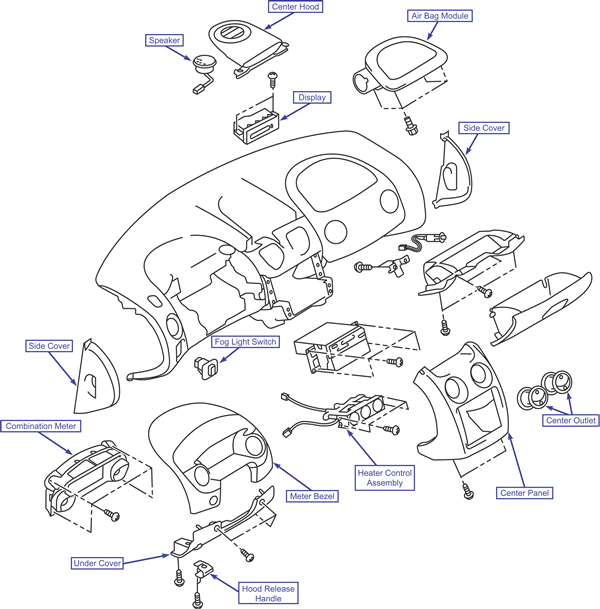

To Remove:

1. Remove the center console.
2. Remove the steering column.
3. Remove the upper A pillar trim.

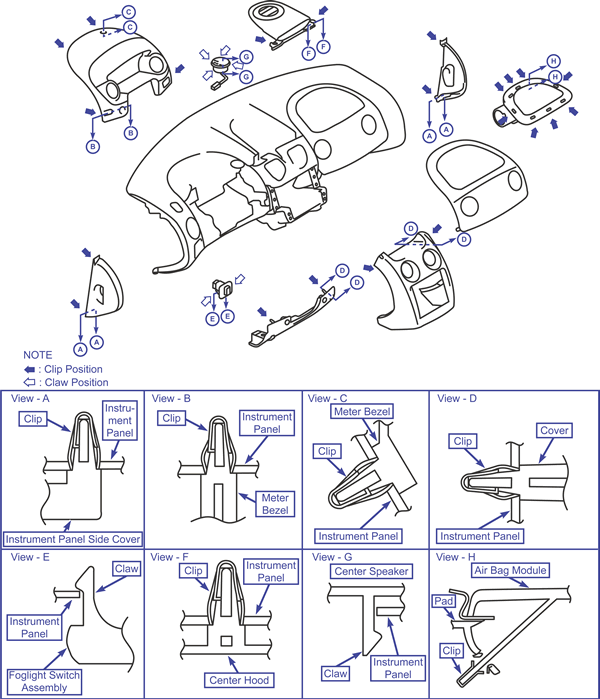

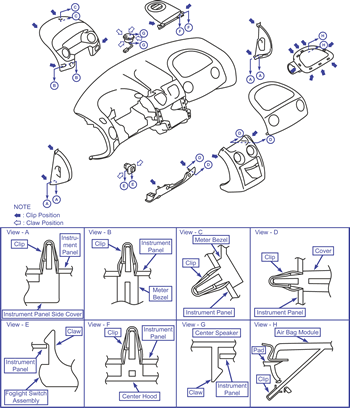

4. Remove the instrument panel side covers.
5. Remove the fog light switch.
6. Remove the hood lock release handle.
7. Remove the under cover.
8. Remove the bezel and combination meter.
9. Remove the center panel.
10. Remove the center outlets.
11. Remove the audio unit.
12. Remove the heater control assembly.
13. Remove the center hood.
14. Remove the center display and speaker.
15. Remove the glove box, light switch and striker.
16. Remove the passenger’s air bag module.

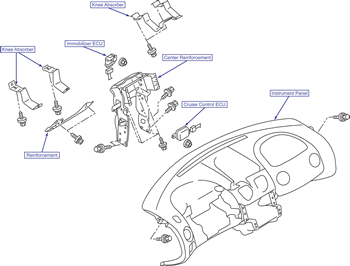

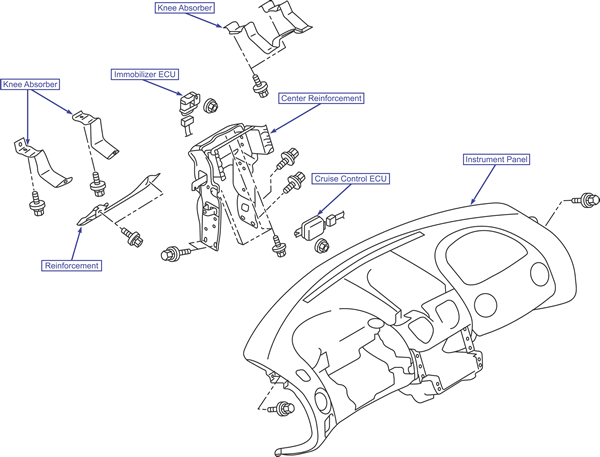

17. Remove the instrument panel and related components.

To Install:

1. Install the instrument panel and related components.
2. Install the passenger’s air bag module.
3. Install the glove box, light switch and striker.
4. Install the center display and speaker.
5. Install the center hood.
6. Install the heater control assembly.
7. Install the audio unit.
8. Install the center outlets.
9. Install the center panel.
10. Install the bezel and combination meter.
11. Install the under cover.
12. Install the hood lock release handle.
13. Install the fog light switch.
14. Install the instrument panel side covers.
15. Install the upper A-pillar trim.
16. Install the steering column.
17. Install the center console.
