A/C-Heater Control Unit

Removal & Installation

To Remove:

  1. Remove the driver’s side dash under cover.
  2. Remove the left foot duct.
  3. Disconnect the air mix cable and mode selection cable from the heater unit.
  4. Remove the three knobs from the control unit.
  5. Remove the center panel from the dash.
  6. Remove the audio unit.
  7. Remove the A/C-heater control unit from the dash.

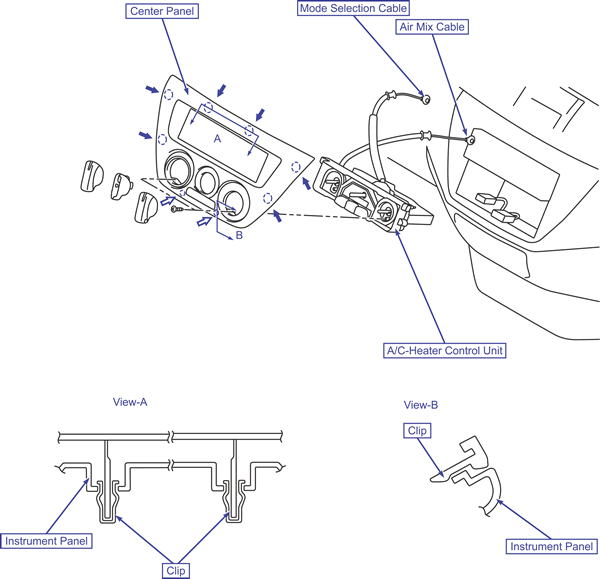

A/C-Heater control unit removal/installation

To Install:

  1. Install the A/C-heater control unit in the dash.
  2. Install the audio unit.
  3. Install the center panel.
  4. Install the three knobs on the control unit.
  5. Connect the air mix cable and mode selection cable to the heater unit.
  6. Install the left foot duct.
  7. Install the driver’s side dash under cover.
