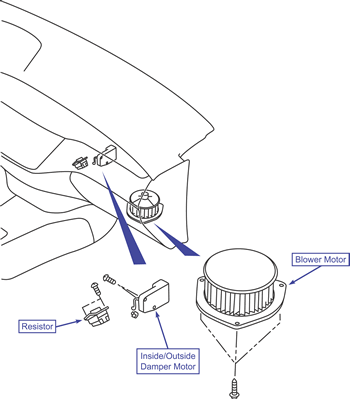

Blower Motor, Resistor & Inside/Outside Damper Motor

Removal & Installation

To Remove:

1. Remove the glove box.
2. Remove the ECM or PCM.
3. Remove the blower motor resistor.
4. Use a low profile screwdriver to access the blower motor screws and remove the blower motor.
5. Remove the inside/outside damper motor.

To Install:

1. Install the inside/outside damper motor.
2. Install the blower motor.
3. Install the blower motor resistor.
4. Install the ECM or PCM.
5. Install the glove box.
