Intake Manifold & Fuel Rail
Removal & Installation
3.8L Engine
To Remove:

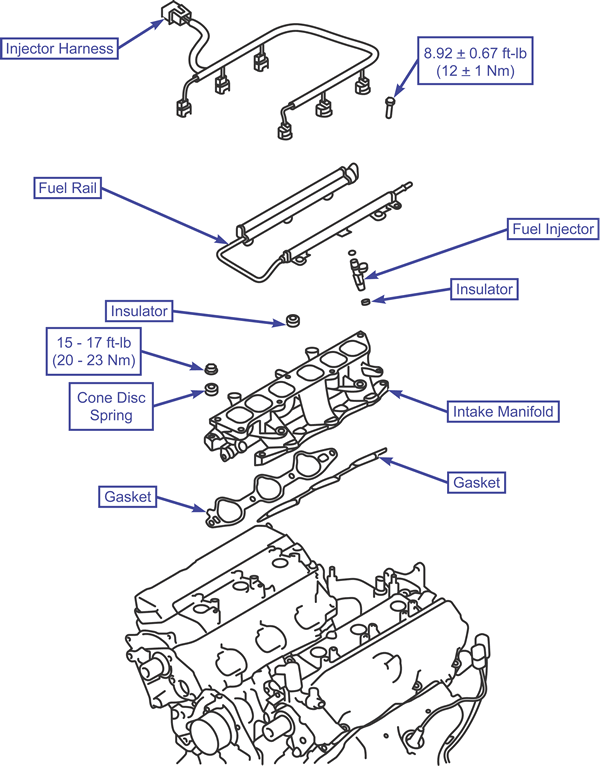

Intake manifold & fuel rail removal/installation (3.8L)

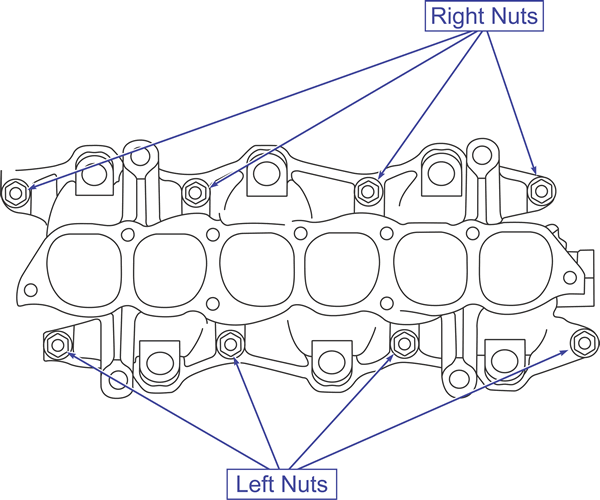

Intake manifold nut tightening (3.8L)
To Install:
Tighten the intake manifold nuts using the following steps;
Tighten right nuts to
57 in-lbs (6.4 Nm)
Tighten left nuts to
17 ft-lbs (23 Nm)
Tighten right nuts to
17 ft-lbs (23 Nm)
Tighten left nuts to
17 ft-lbs (23 Nm)
Tighten right nuts to
17 ft-lbs (23 Nm)
