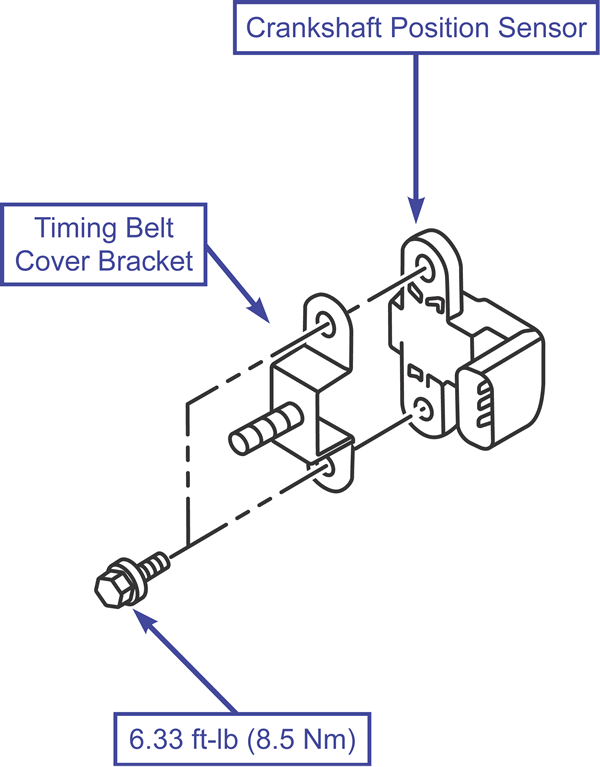

Crankshaft Position Sensor
Removal & Installation
2.4L Engine
NOTE:
Remove the lower timing belt cover.

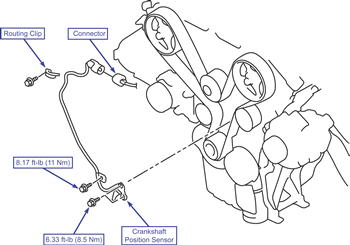

Crankshaft position sensor removal/installation (2.4L)
3.8L Engine
NOTE:
Remove the lower timing belt cover.

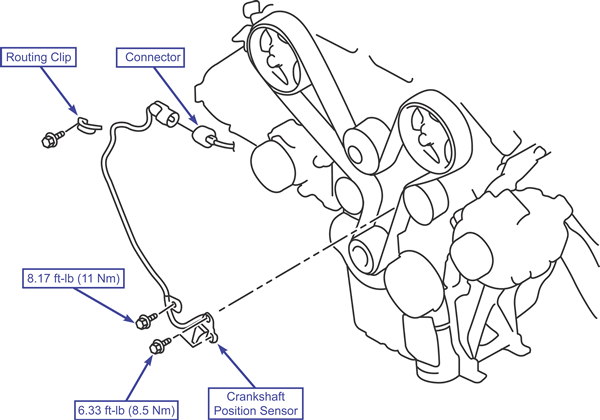

Crankshaft position sensor removal/installation (3.8L)
