Exhaust Gas Recirculation (EGR) Valve

Removal & Installation

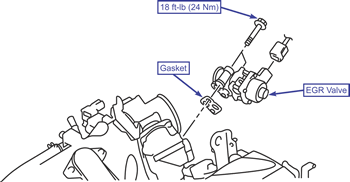

2.4L Engine

To Remove:

1. Remove the battery.
2. Remove the air intake resonator.
3. Disconnect the electrical connector.
4. Remove the EGR valve and gasket.

To Install:

1. Install the EGR valve with a new gasket.
2. Connect the electrical connector to the EGR valve.
3. Install the air intake resonator.
4. Install the battery.

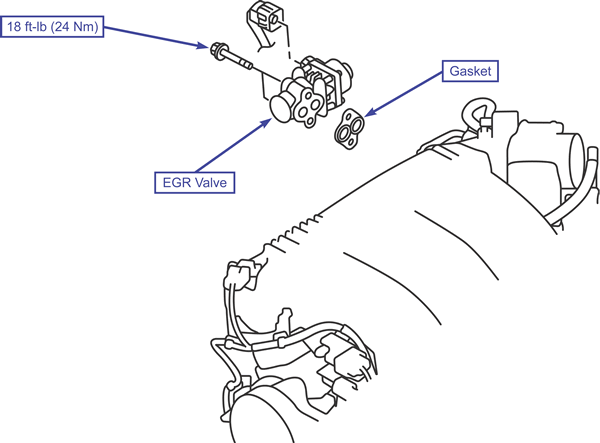

3.8L Engine

To Remove:

1. Remove the strut tower brace.
2. Disconnect the electrical connector.
3. Remove the EGR valve and gasket.

To Install:

1. Install the EGR valve with a new gasket.
2. Connect the electrical connector to the EGR valve.
3. Install the strut tower brace.
