A noticeable lack of engine power, excessive oil consumption and/or poor fuel mileage measured over an extended period are all indicators of internal engine wear. Worn piston rings, scored or worn cylinder bores, leaking head gaskets, sticking or burnt valves and worn valve seats are all possible culprits here. A check of each cylinder's compression will help you locate the problems.

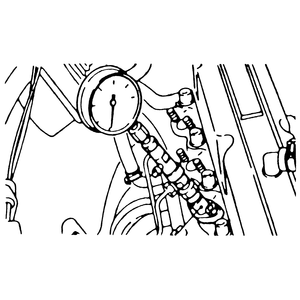

| Fig. 6: The screw-in type compression gauge is more accurate
|
| Fig. 7: Diesel engines require a special compression
gauge adaptor
|
As mentioned in the Tools and Equipment section of Section 1, a screw-in type compression gauge is more accurate that the type you simply hold against the spark plug hole, although it takes slightly longer to use. It's worth it to obtain a more accurate reading.
