1990–95 MONTERO

• Main Fusible Links: one at positive battery terminal, one in small terminal box near the battery.
• Fusebox: mounted under the left-hand side dashboard, next to the lower speaker.
• Special fuses not in the fusebox: dedicated fuse No. 9 located on relay board, just outside of the fuse box.
• Turn Signal and Hazard Flasher Relay, Overdrive Relay, Power Window Relay, Defogger Relay, and Rear Intermittent Wiper Relay: separate units mounted under the dash, next to the fuse box and the left-hand, lower speaker.
• Tail Light Relay, Condenser Fan Motor Relay, A/C Compressor Relay, Generator Relay, and Headlight Relay: separate units mounted in the small terminal box next to the battery.

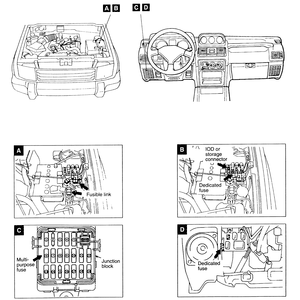

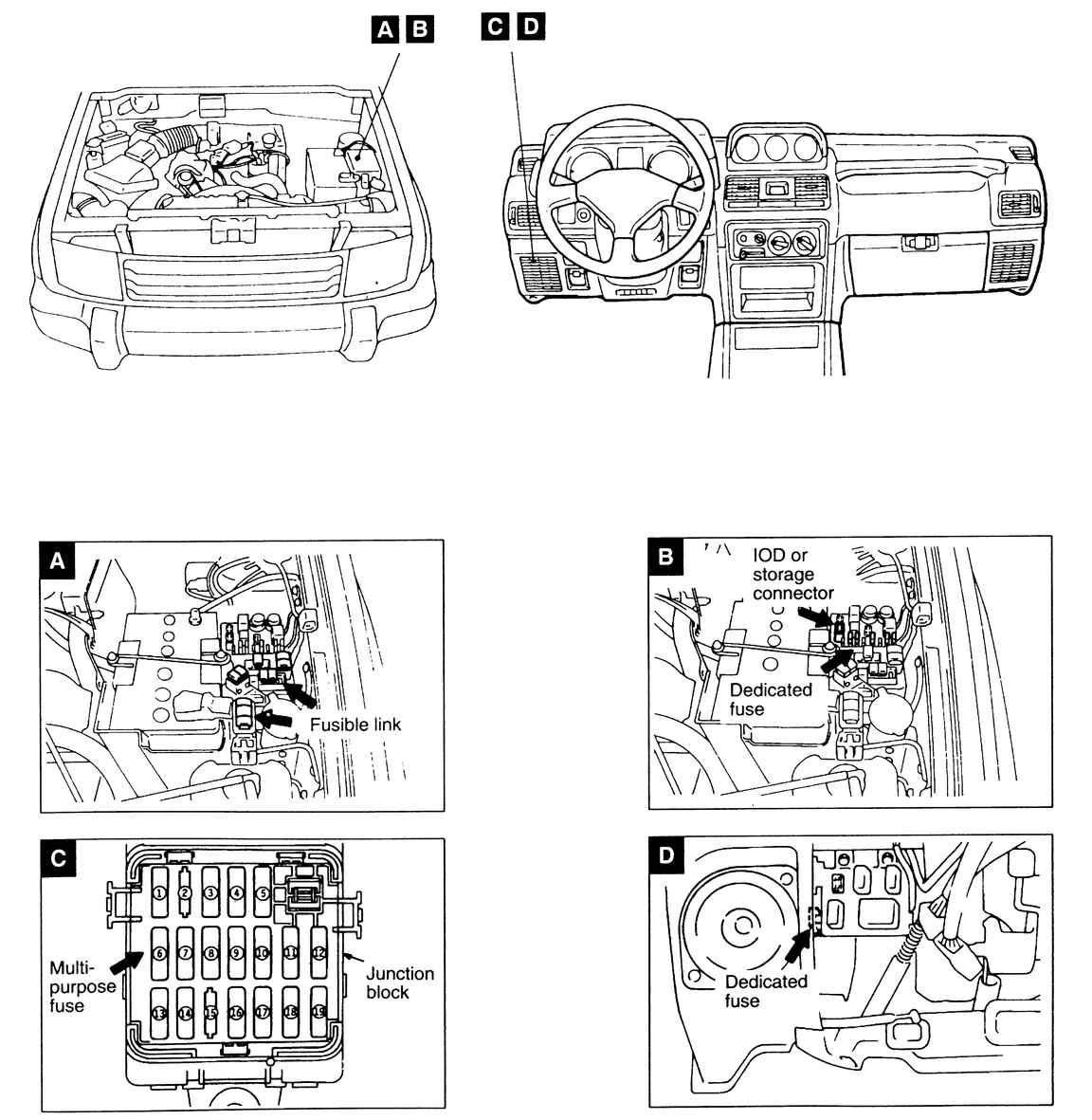

  Fig. 1: Fusible link, fuse and Ignition Off Draw (IOD)/storage connector locations — 1992–95 Monteros

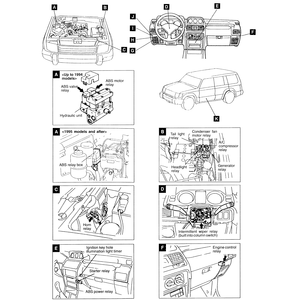

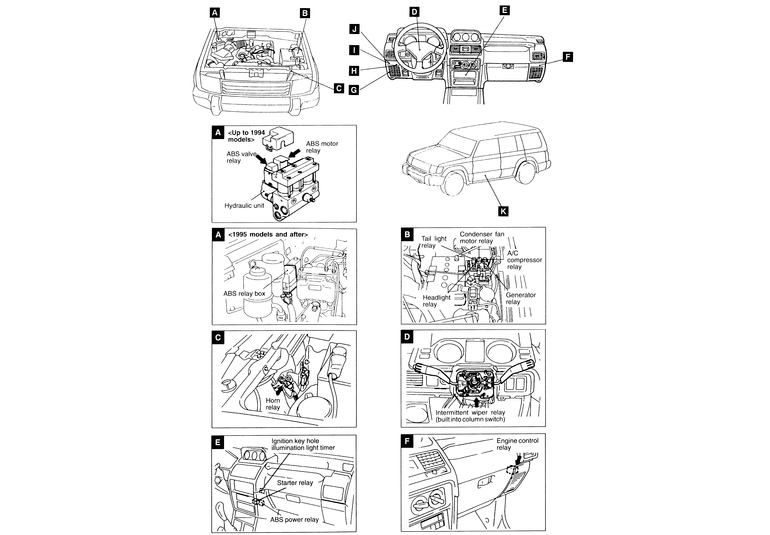

  Fig. 2: Relay locations — 1992–95 Monteros

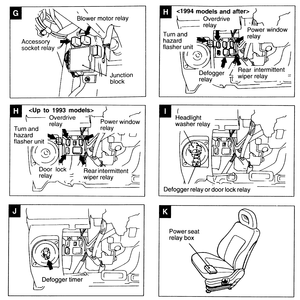

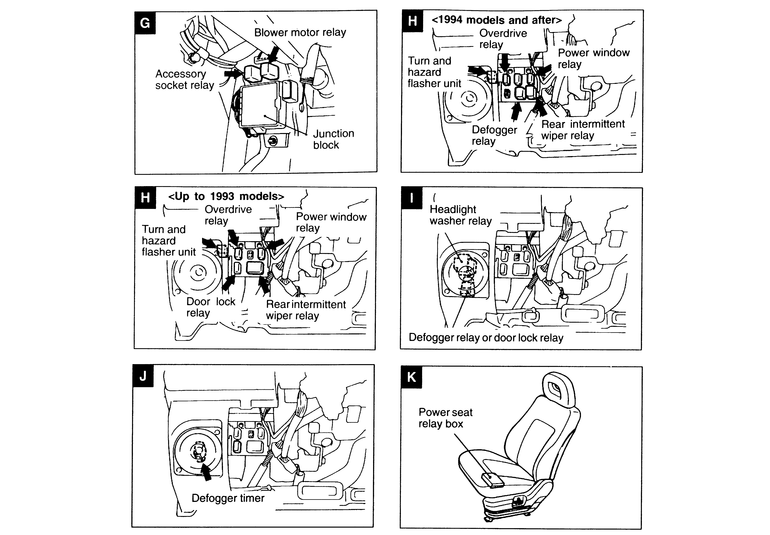

  Fig. 3: Relay locations (continued) — 1992–95 Monteros
