Main Fusible Links: 1983–89 models — two at the positive
battery terminal; 1990–95 models — one at the positive
battery terminal.
Sub-links: 1983–86 models have none; 1987–95 models — one
on the left inner fender panel.
Fusebox: under left dashboard.
Special fuses not in the fusebox: none
Turn Signal and Hazard Flasher Relay (1983–95 models), Seat Belt Warning
Time Relay (1992–95 models), Power Window Relay (1992–95 models),
Starter Relay (1992–95 models), Starter Unlock Relay (1992–95
models): combined unit on relay board near the fusebox.

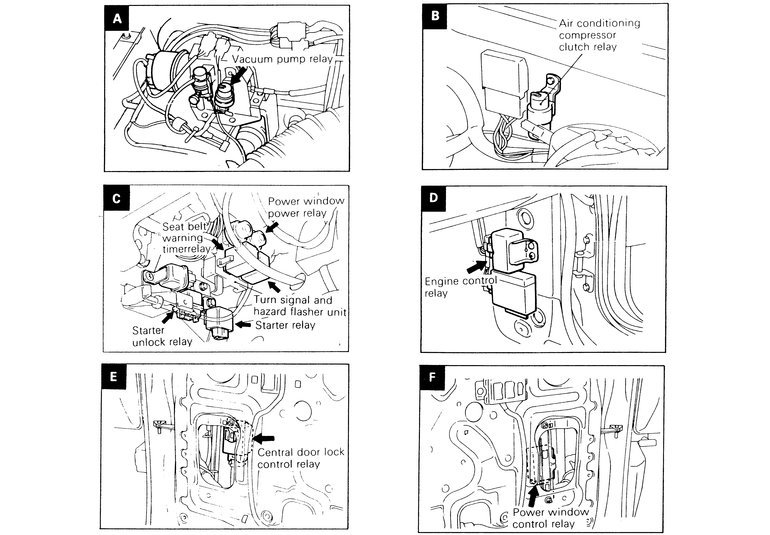

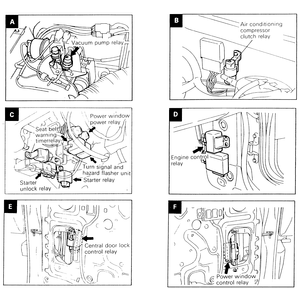

Vacuum Pump Relay (1992–95 models): mounted in the back, right-hand
corner of the engine compartment.
A/C Compressor Clutch Relay (1992–95 models): mounted on the left,
inner fender, next to the sub-fusible link.
Central Door Lock Control Relay (1992–95 models): mounted in the front
of the right-hand door, under the door panel trim.
Power Window Control Relay (1992–95 models): mounted in the front
left-hand door, under the door panel trim.

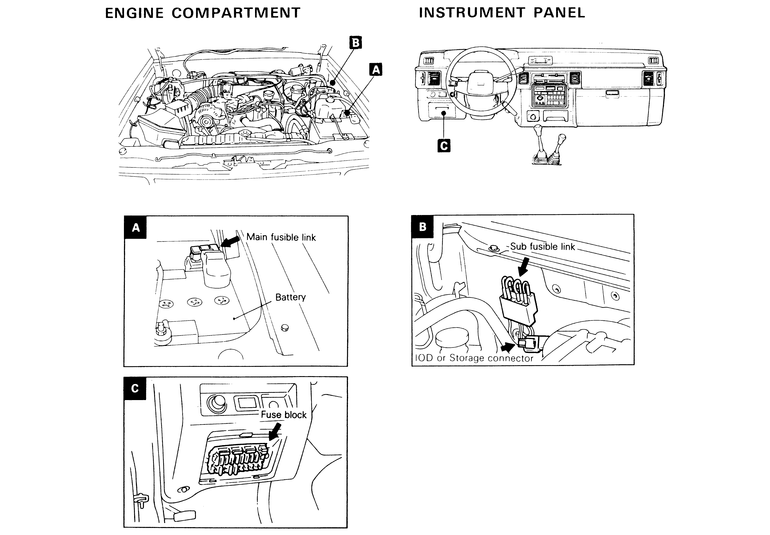

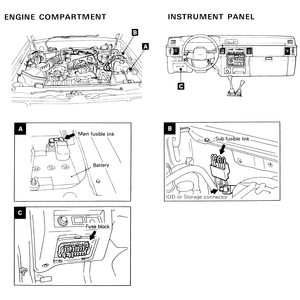

Fig. 1: Fusible link, fuse and Ignition Off Draw
(IOD)/storage connector locations — 1987–95
Pick-up trucks
