REMOVAL & INSTALLATION

1. Disconnect the negative (-) battery cable from the battery.
2. Remove the two side-mounting screws.
3. Pull the meter hood off of the multi-meter.
4. Remove the multi-meter mounting screws and pull the multi-meter up high enough to disconnect the wiring hooked to the bottom of it.
5. Remove the multi-meter assembly.
6. Remove the meter mounting bracket from the instrument panel.
7. To install, screw the meter mounting bracket to the instrument panel.
8. Hook the electrical wiring to the under-side of the multi-meter and set the meter in place.
9. Secure the meter onto the instrument panel with the retaining screws.
10. Fasten the meter hood to the multi-meter with the two side-mounting screws.
11. Hook the negative (-) battery cable back to the battery.

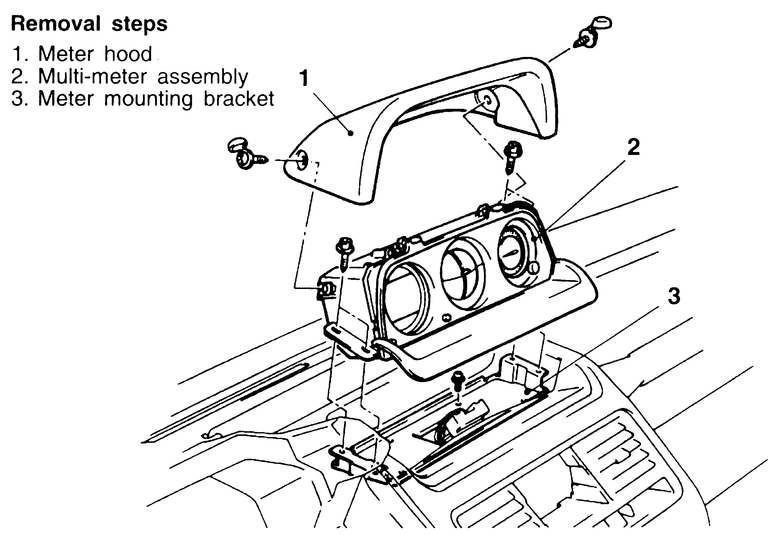

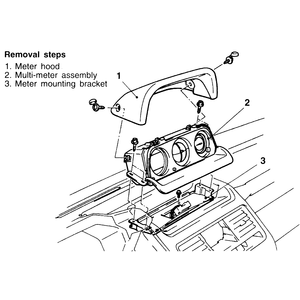

    Fig. 1: Multi-meter assembly removal and installation components — most Monteros similar
