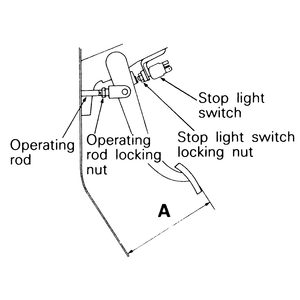

| Fig. 1: The brake pedal operating components — measure
the distance from the pedal to the floor (A)
|

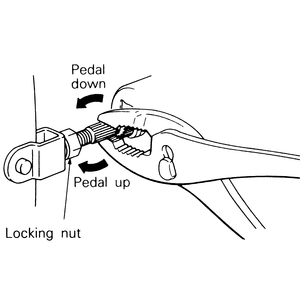

| Fig. 2: Use a pair of pliers to adjust the brake
pedal operating rod to adjust measurement (A) to the standard specifications
|

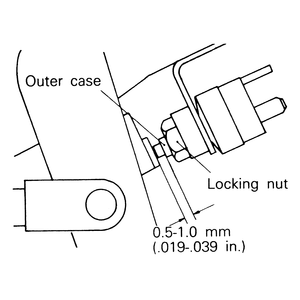

| Fig. 3: Adjust the brake light switch so that there
is 0.019–0.039 in. (0.5–1.0mm) between the outer case
and the brake pedal
|

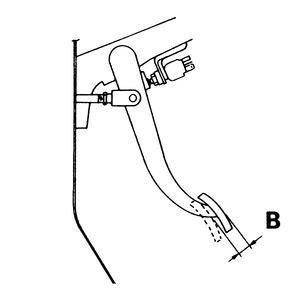

| Fig. 4: Measure the distance (B) between the pedal
resting position and the point when resistance is felt
|

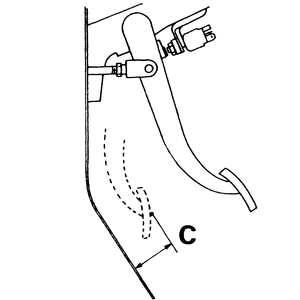

| Fig. 5: Measure distance (C) after depressing the
brake pedal with approximately 110 lbs. (500 N) of force while the
engine is running
|
