ADJUSTING

Alternator Belt

1. Apply penetrating oil to the alternator mounting and adjusting bolts. Loosen the bolts.
2. Pull or pry on the alternator until the belt seems tight.
3. Temporarily snug the adjusting bolt and check belt deflection.

   NOTE: Replace the belt if cracked or defective in any way.

4. If belt tension is OK, tighten the alternator mounting and adjusting bolts.

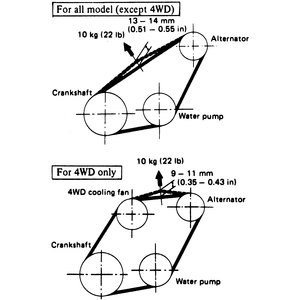

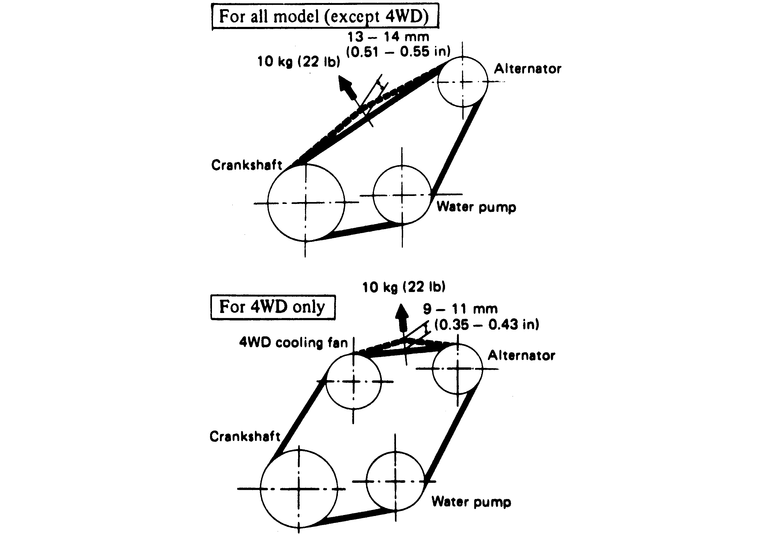

   Fig. 1: Belt tension for models without power steering and air conditioning

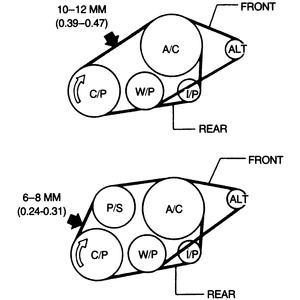

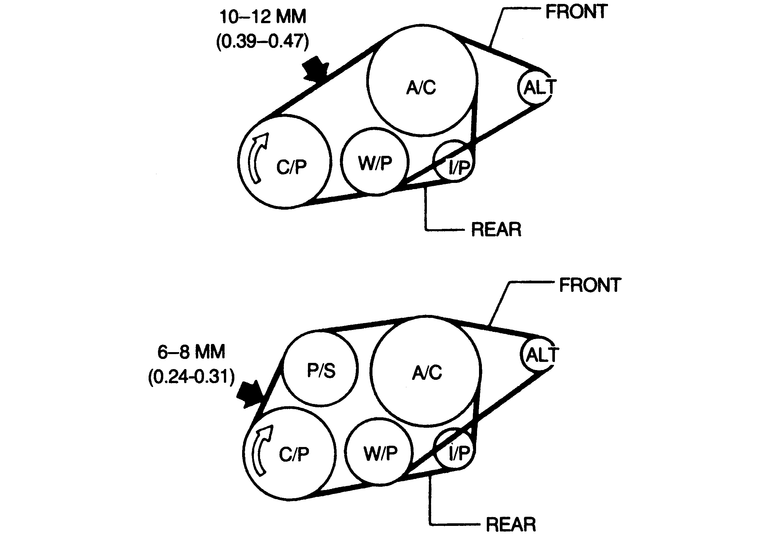

   Fig. 2: Checking power steering pump and air conditioning belt tension

Power Steering Belt

1. Remove the idler cover cap by turning and pulling. Adjustable jawed pliers with a piece of rag between the jaws can be used.
2. Turn the adjusting bolt until the correct belt tension is obtained. If removing the belt, loosen the adjusting bolt until the drive belt can be removed.
3. After a new belt is installed and the correct tension obtained, install the idler cap cover by pushing in and turning.
