Rocker Arm (Valve) Cover

REMOVAL & INSTALLATION

1. Remove the bolts from the rocker covers.

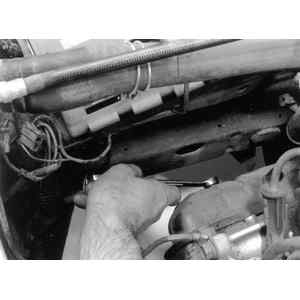

   Fig. 1: Remove the bolts from the rocker covers

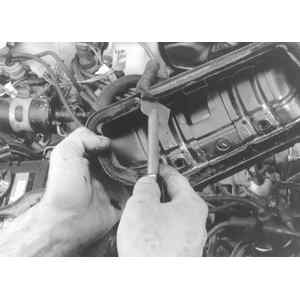

   Fig. 2: Carefully remove the old gasket material using a gasket scraper

2. Using a rubber hammer, tap the rocker covers to break the seal between the gasket and the valve cover.
3. Remove the rocker cover from the head.
4. Remove the old gasket from the rocker cover and clean the surface of the cylinder head and the rocker cover.

   To install:

5. Spread Permatex® #2 on the mating surface of the rocker cover (to hold the gasket in place during installation), and install a new gasket.
6. Place the rocker cover on the head, install the bolts and torque to 4 ft. lbs. (5 Nm)
