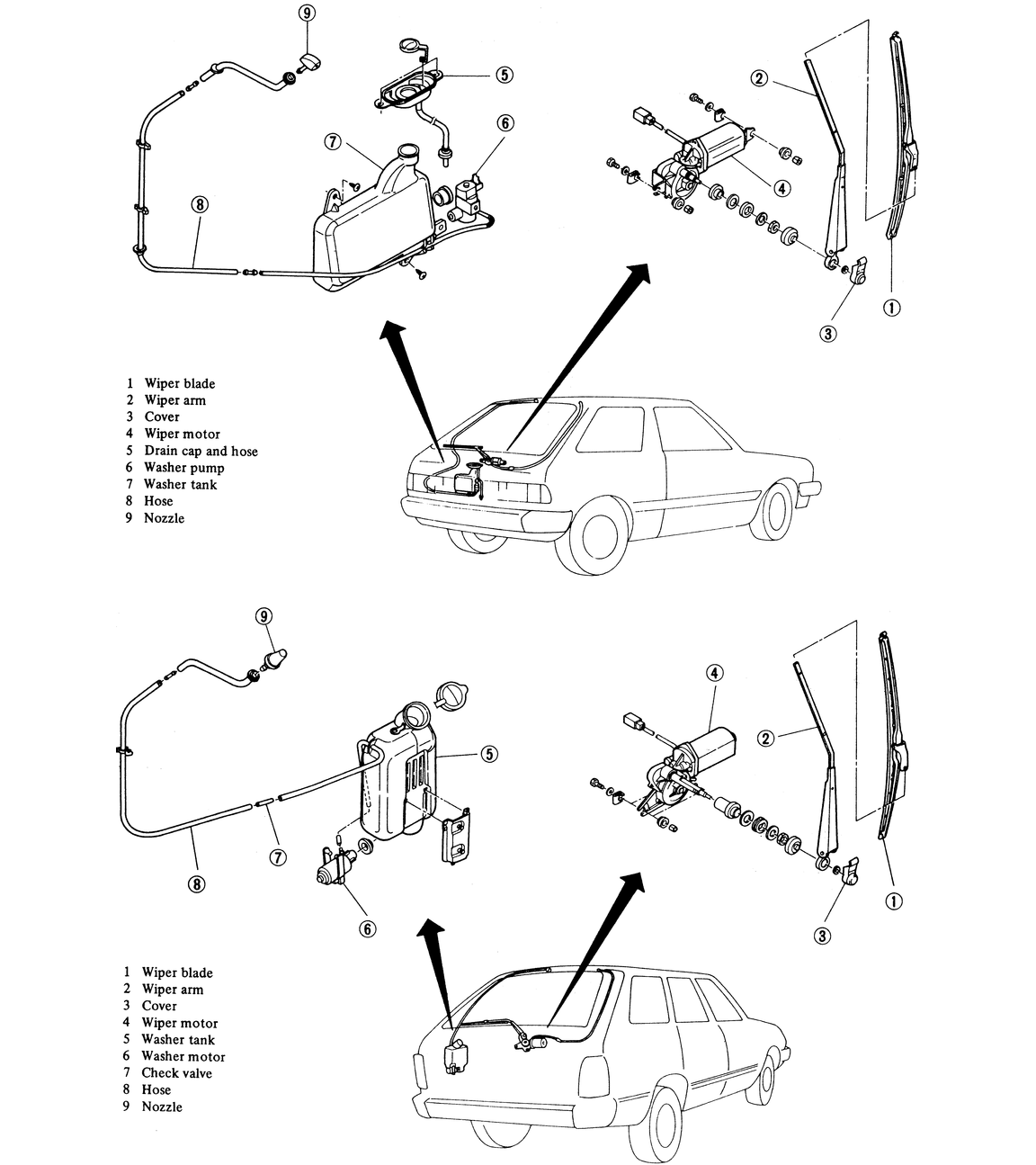

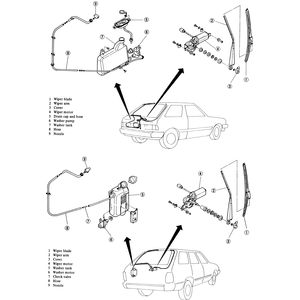

Fig. 1: Rear wiper and washer components on the Hatchback

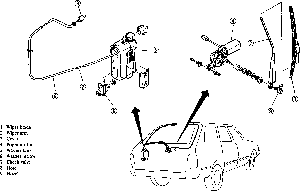

Fig. 2: Rear wiper and washer components on the Station
Wagon
At the rear window, pull the wiper blade outward from the arm and press
down on the clip, then remove the blade from the arm.
Remove the wiper arm cover.
Loosen the wiper arm-to-wiper assembly nut, then remove the nut and the
arm from the assembly.
Remove the wiper assembly-to-rear gate cap, nut and cushion.
From inside of the rear gate, remove the wiper motor assembly trim panel.
Disengage the electrical connector from the wiper motor assembly.
Remove the wiper motor assembly-to-rear gate bolts and the motor assembly
from the rear gate.
If necessary, replace the wiper motor.
To install, reverse the above procedures. With the rear wiper motor switch
in the OFF position, install the wiper arm blade so that
it is positioned 0.98 in. (25mm) above the rear glass molding.
