Speedometer Cable

REMOVAL & INSTALLATION

1. Working from under the hood, remove the retaining bolt that secures the speedometer cable to the transaxle.
2. Remove the cable from the retaining clamps.

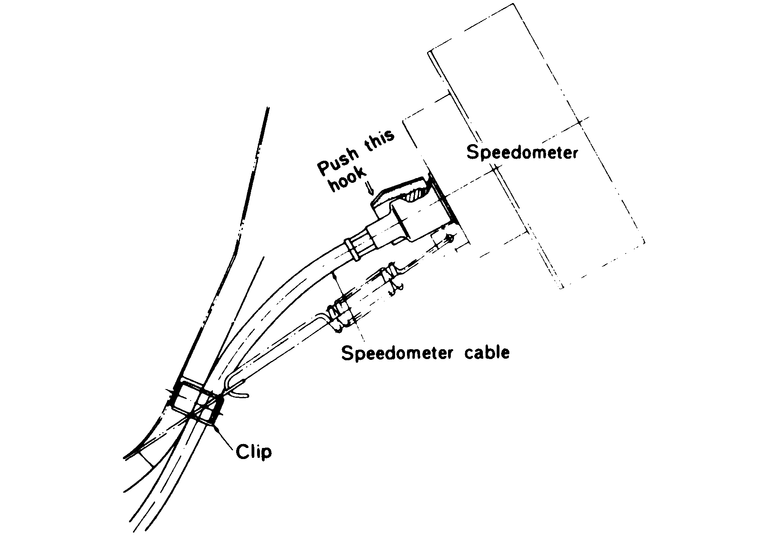

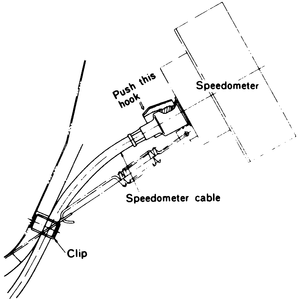

   Fig. 1: Push on the hook to disengage the speedometer cable

3. Working from inside the car, remove the instrument panel as describer earlier.
4. Unscrew the speedometer cable from the back of the speedometer.
5. Again, working from under the hood, pull the speedometer cable from the vehicle.
6. Installation is the reverse of removal.
