Windshield Washer Fluid Reservoir

REMOVAL & INSTALLATION

1. Disconnect the negative (-) battery cable.
2. Disengage the hoses from the fluid reservoir.

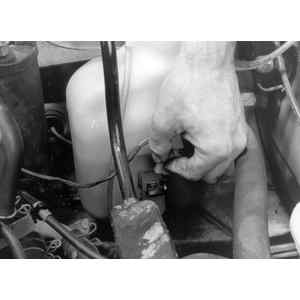

   Fig. 1: Disengage the electrical connection . . .

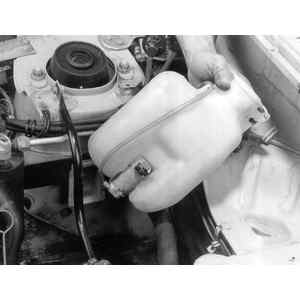

   Fig. 2: . . . then remove the tank by pulling it up

3. Remove the reservoir retaining fasteners.
4. Disengage the electrical connections.
5. Remove the tank by pulling it up.

   To install:

6. Install the tank and engage the electrical connections.
7. Fasten the reservoir retaining fasteners and connect the hoses.
8. Connect the negative battery cable.
