Windshield Washer Motor

REMOVAL & INSTALLATION

The windshield washer motor is located on the windshield fluid reservoir.

1. Disconnect the negative (-) battery cable.
2. Disengage the hoses from the fluid reservoir.

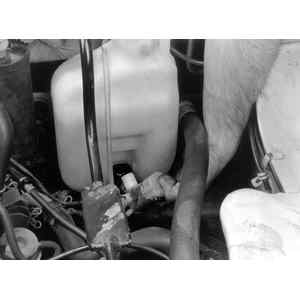

   Fig. 1: Remove the washer motor by pulling it out of the tank

3. Remove the reservoir retaining fasteners.
4. Disengage the electrical connections.
5. Remove the washer motor from the tank.

   To install:

6. Install the washer motor.
7. Install the tank and engage the electrical connections.
8. Fasten the reservoir retaining fasteners and connect the hoses.
9. Connect the negative battery cable.
