The power steering gearbox is a rack and pinion type integral system. The power cylinder is built in the gearbox, using the rack shaft as a piston. The control valve is arranged around the pinion shaft.

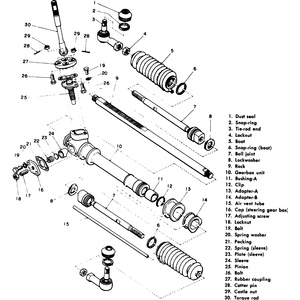

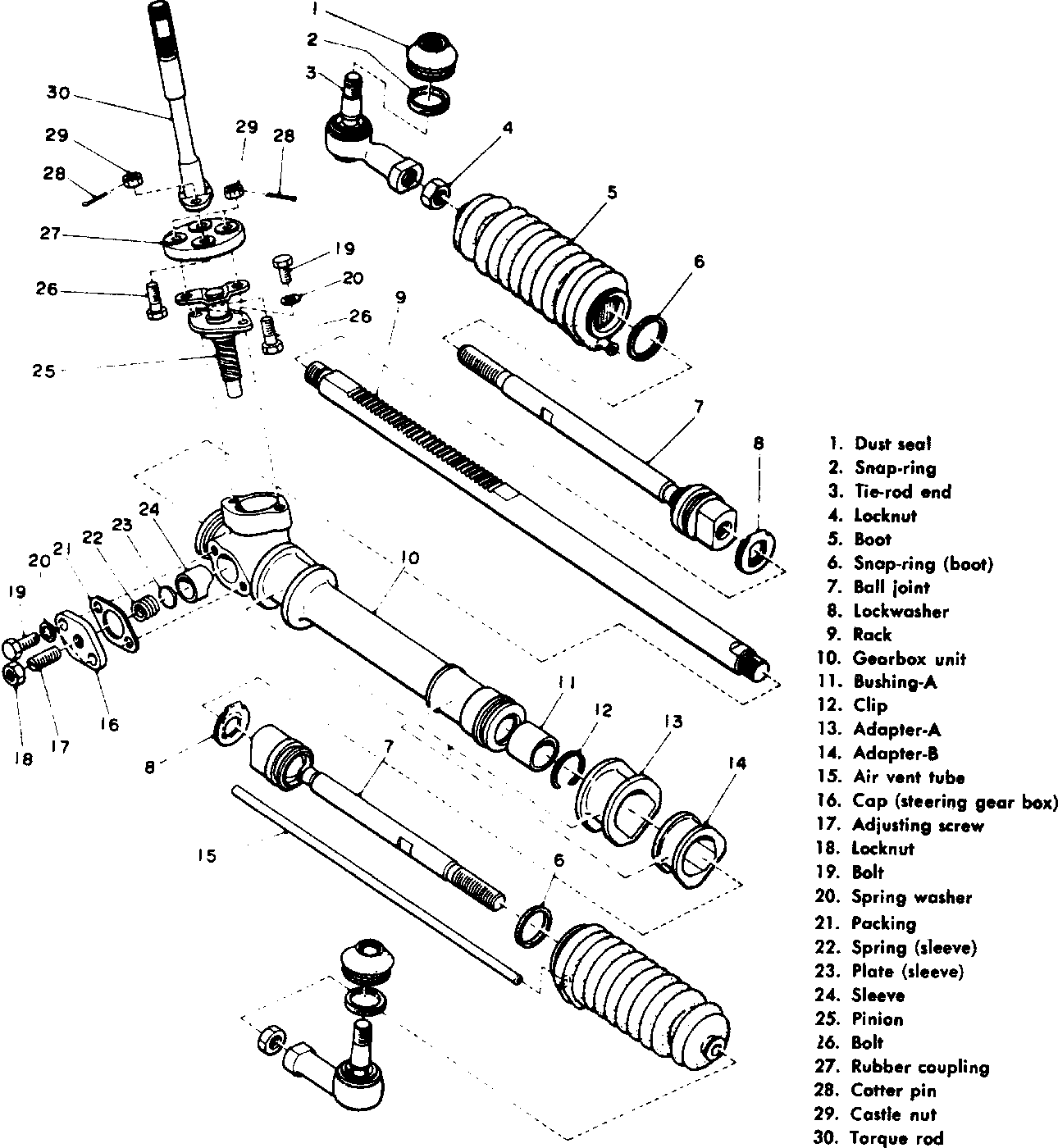

| Fig. 1: Exploded view of a common steering gear
|
